Installation Procedure

CAUTION: Use care when removing or installing the filter plate assembly. A broken or missing retaining tab may not adequately secure the filter plate to the control solenoid valve assembly, resulting in possible damage or contamination.

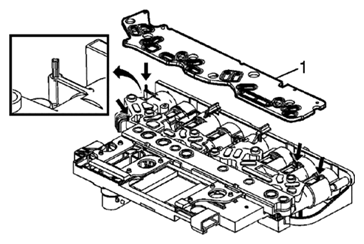

Fig 1: Installing Control Solenoid Valve Assembly Filter Plate

Courtesy of SUZUKI OF AMERICA CORP.

Install a NEW control solenoid valve assembly filter plate (1).

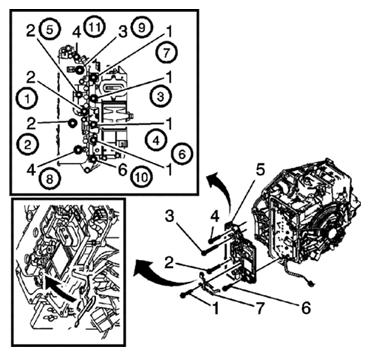

Fig 2: Installing Control Solenoid Valve Body And TCM Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Install the control solenoid valve body and TCM assembly (5).
Rotate the control solenoid valve spring (7) into position.
CAUTION: Refer to FASTENER NOTICE .

NOTE: Install all bolts before tightening, then tighten in specified sequence.
Install the 4 control valve body bolts (1) M6 x 80.
Install the control valve body bolt (6) M6 x 55.
Install the 3 control valve body bolts (2) M6 x 95.
Install the control valve body bolt (3) M6 x 42.
Install the 2 control valve body bolts (4) M6 x 65 and tighten to 12 N.m (106 lb in).

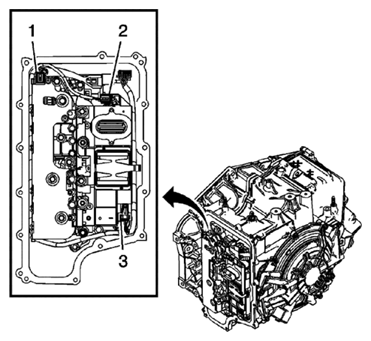

Fig 3: Identifying Input And Output Speed Sensor Electrical With Shift Position Switch Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the input speed sensor electrical connector (1).
Connect the output speed sensor electrical connector (2).
Connect the shift position switch electrical connector (3).
Install the control valve body cover. Refer to CONTROL VALVE BODY COVER REPLACEMENT .
For transmission control module programming and setup. Refer to CONTROL MODULE REFERENCES .
NOTE: After an internal transmission repair or internal part replacement the service fast learn adapt procedure should be performed.
Perform the service fast learn adapt procedure. Refer to SERVICE FAST LEARN ADAPTS .
