Transmission Rear Mount Replacement (AWD)

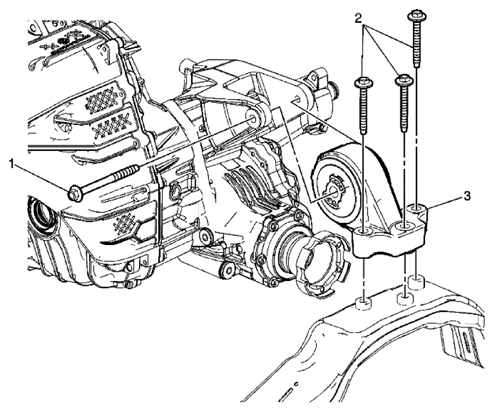

Fig 1: Identifying Transmission Rear Mount (AWD)

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedures Remove the right exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT SIDE . Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Support the transmission with a transmission jack.
1	Rear Transmission Mount Thru Bolt CAUTION: Refer to FASTENER NOTICE . Tightening torque 110 N.m (81 lb ft)
2	Rear Transmission Mount Bolt Tightening torque 50 N.m (37 lb ft)
3	Rear Transmission Mount
