Transmission Control Lever Knob Replacement

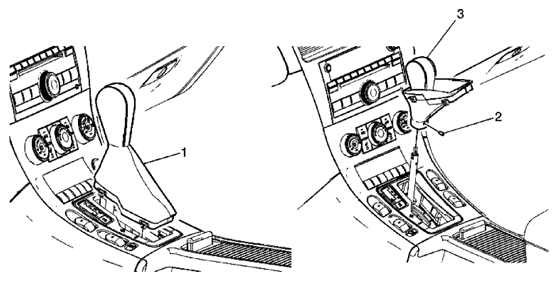

Fig 1: Identifying Transmission Control Lever Knob
G06490217Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME REFERENCE

Callout Component Name
1 Shift Control Knob Boot
Procedure
  1. Depress the sides of the boot in order to release the boot from the instrument panel (I/P) lower brace bezel.
  2. Lift the boot up in order to access the shift control knob screw.
2 Shift Control Knob Screw
CAUTION: Refer to FASTENER NOTICE .

Procedure
Loosen the shift control knob screw approximately 4-5 turns. It is not necessary to fully remove the screw from the shift control knob.
Tightening torque
1.5 N.m (13 lb in).
3 Shift Control Knob
Procedure
Remove the shift control boot if replacing the knob. Refer to TRANSMISSION CONTROL LEVER BOOT REPLACEMENT .
