Pump Assembly Installation
Pump Assembly Installation

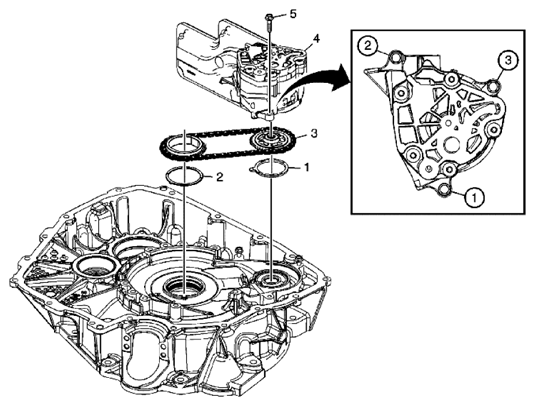

COMPONENT NAME REFERENCE
| Callout | Component Name |
|---|---|
| 1 | Driven Sprocket Thrust Washer |
| 2 | Drive Sprocket Thrust Washer |
| 3 | Install Drive Link Assembly Tip: Install as an assembly. |
| 4 | A/Trans Fluid Pump Assembly Tip: Rotating the drive sprocket and link assembly while installing the oil pump will aid in aligning the driven sprocket and oil pump drive shaft splines. |
| 5 | A/Trans Fluid Pump Bolt M6 x 25 (Qty: 3)
CAUTION:
Refer to FASTENER NOTICE
. Procedure: Tighten in sequence shown. Tightening torque 12 N.m (106 lb in). |
