Torque Converter Removal

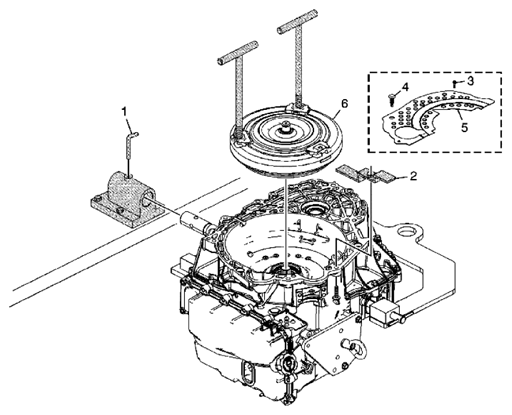

Fig 1: Identifying Torque Converter Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	Lock Pin WARNING: Lock pin must be secured into the bench fixture to hold the transmission and prevent bodily injury. Tip: Ensure the J 3289-20 holding fixture is mounted to a bench that is properly supported and will support the weight of the transmission assembly without tipping. J-39890 holding fixture adapter and an engine stand can be used as an alternative method for supporting the transmission assembly during repairs. Special Tools J 3289-20 Holding Fixture J-39890 Transmission Holding Fixture Adapter For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
2	J 21366 Converter Holding Strap For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
3	Dust Cover Bolts M10 x 25, model dependent (Qty: 2)
4	Dust Cover Push Pin, model dependent
5	Dust Cover, model dependent
6	Torque Converter Assembly CAUTION: Only install the lift assist handles until it stops. Do not tighten. Over tightening the lift assist handles can cause damage to the torque converter. Tip: Failure to raise the torque converter straight up could damage the torque converter clutch lip seal inside the torque converter clutch assembly. Special Tools J 46409 Torque Converter Lifting Handles For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
