Range Selector Lever Cable Bracket Replacement

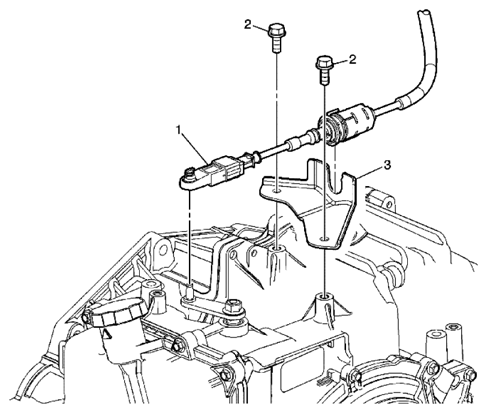

Fig 1: Identifying Range Selector Lever Cable Bracket

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	Range Selector Lever Cable Tip: For additional information on disconnecting the range selector lever cable from the bracket or lever, refer to RANGE SELECTOR LEVER CABLE REPLACEMENT .
2	Range Selector Lever Cable Bracket Bolt (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 25 N.m (18 lb ft)
3	Range Selector Lever Cable Bracket
