Manual Shift Shaft Seal Replacement

Reference: MANUAL SHIFT DETENT LEVER WITH SHAFT POSITION SWITCH ASSEMBLY AND PARK PAWL ACTUATOR REMOVAL

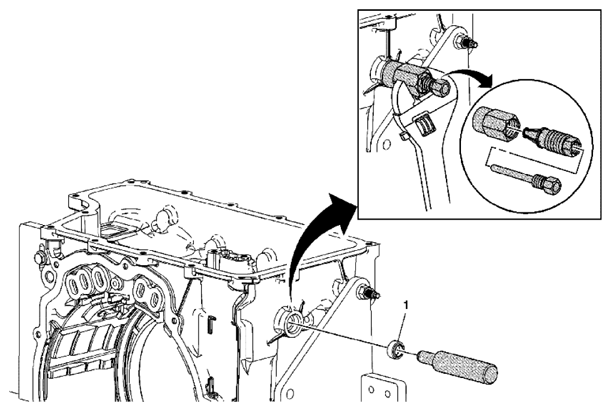

Fig 1: Identifying Manual Shift Shaft Seal
G06490312Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME REFERENCE

Callout Component Name
1 Manual Shift Shaft Seal
Special Tools
  • J 45201 Cooler Line Seal Remover
  • J 46626 Seal Installer

For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
