Input, Reaction, and Output Carrier Installation

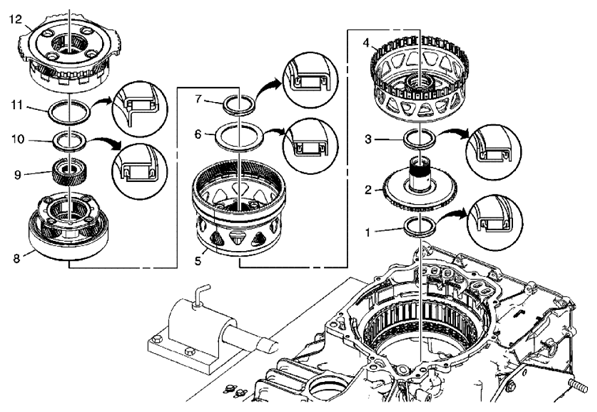

Fig 1: Identifying Input, Reaction And Output Carrier Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedure Note location of the orientation lip on bearings. All thrust bearings can only be assembled one way.
1	Input Shaft Thrust Bearing Assembly
2	Output Carrier Transfer Drive Gear Hub Assembly
3	Front Differential Transfer Drive Gear Input Hub Bearing Assembly
4	Output Sun Gear Assembly
5	Output Carrier Assembly
6	Output Carrier Thrust Bearing Assembly
7	Output Carrier Thrust Bearing Assembly
8	Input (w/Output Internal Gear) Carrier Assembly
9	Input Sun Gear
10	Input Sun Gear Thrust Bearing Assembly
11	Input Carrier Thrust Bearing Assembly
12	Reaction (w/Input Internal Gear) Carrier Assembly
