Front Differential Drive Pinion Gear Bearing Replacement: Installation

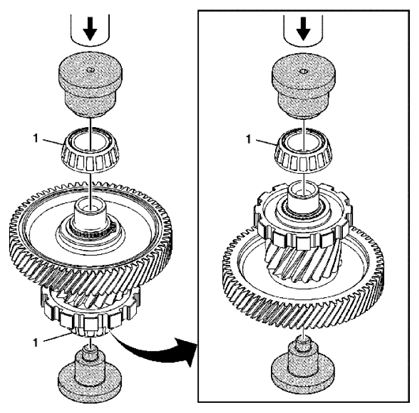

Fig 1: Identifying Front Differential Drive Pinion Gear Bearing Installation

Courtesy of SUZUKI OF AMERICA CORP.

Installation

COMPONENT NAME REFERENCE

Callout	Component Name
1	Front Differential Drive Pinion Gear Bearing CAUTION: Pressing against the bearing assembly can damage the bearing and cause premature bearing failure. Special Tools  DT-47928 Bearing Installer For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .

Reference: FRONT DIFFERENTIAL DRIVE PINION GEAR BEARING THRUST WASHER AND FRONT DIFFERENTIAL BEARING WASHER MEASUREMENT
