SIR Schematics

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

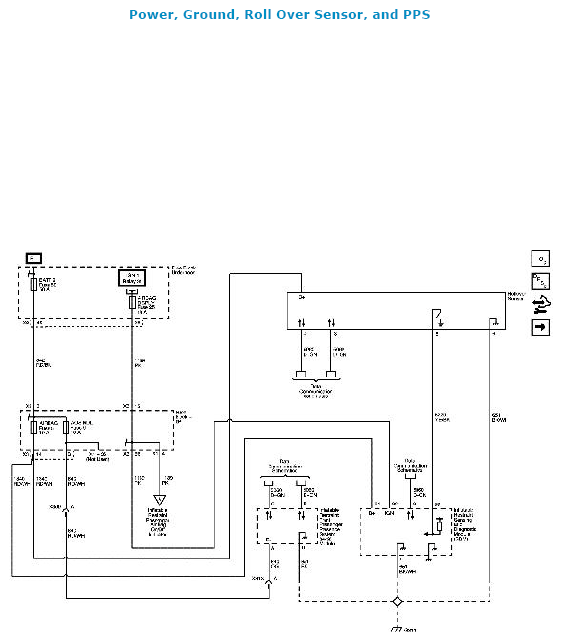

Fig 1: Power, Ground, Roll Over Sensor, And PPS Schematics Diagram

Courtesy of SUZUKI OF AMERICA CORP.

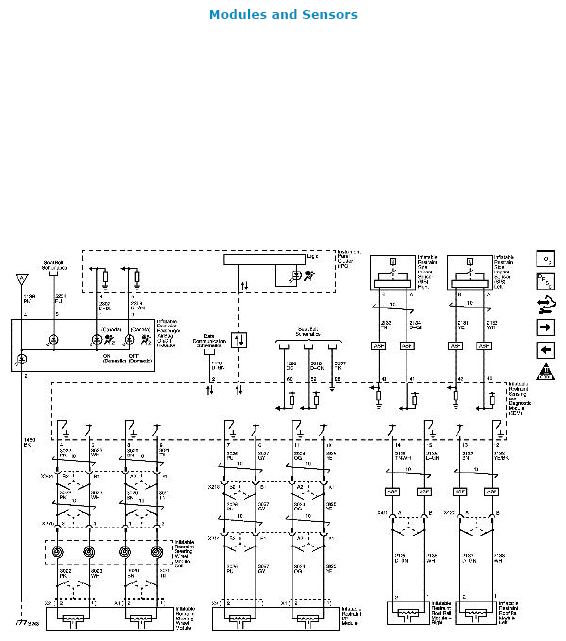

Fig 2: Modules And Sensors Schematics Diagram

Courtesy of SUZUKI OF AMERICA CORP.

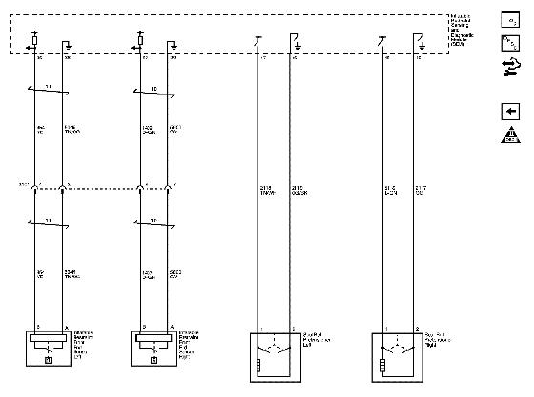

Fig 3: Pretensioners And Front End Sensors Schematics Diagram

Courtesy of SUZUKI OF AMERICA CORP.
