Front Bumper Fascia Energy Absorber Replacement
WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT SPECIFICATION
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT . |
|

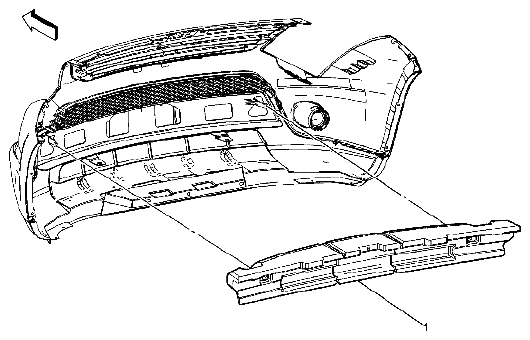

| 1 | Front Energy Absorber Tip: Release the two retaining tabs to remove the absorber assembly. |
