Installation Procedure

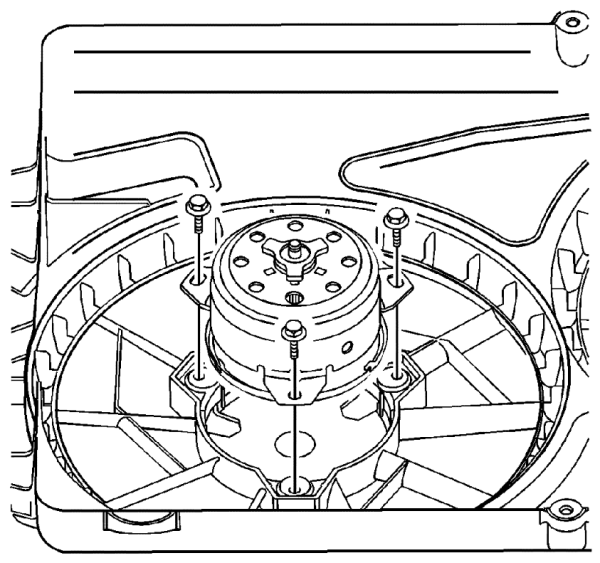

Fig 1: Identifying Fan Motor Screws
G00491080Courtesy of SUZUKI OF AMERICA CORP.
  1. Install the fan motor to the fan shroud.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fan motor screws to the fan shroud.

    Tightening torque

    Tighten the nuts to 8 N.m (71 lb in).

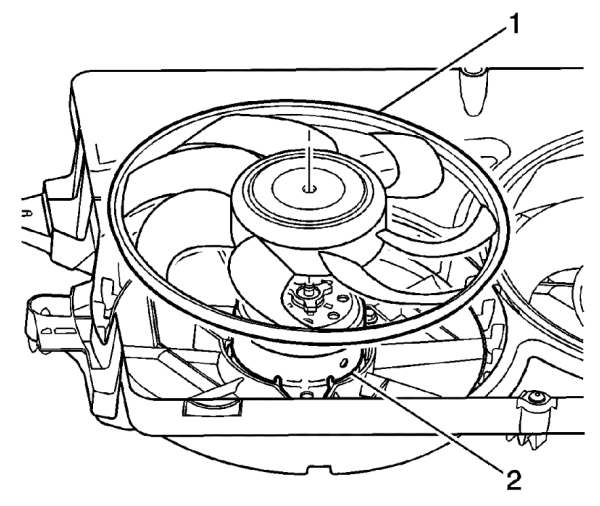

    3. Fig 2: Identifying Fan And Motor
    G00491079Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the fan (1) to the motor (2).

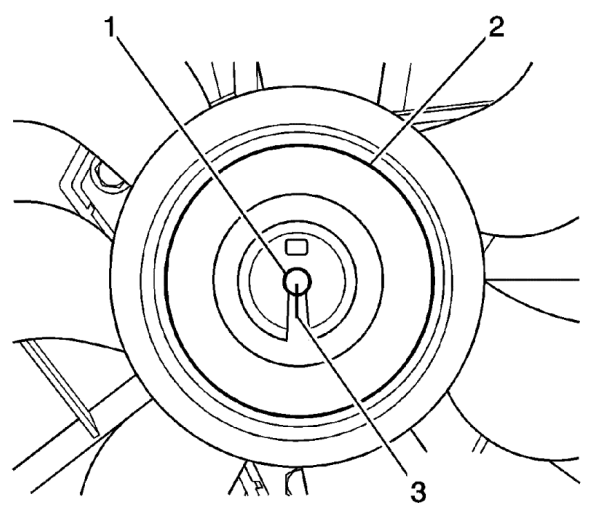

    Fig 3: Identifying Fan Hub, Motor Shaft, And Scribe Mark
    G00491077Courtesy of SUZUKI OF AMERICA CORP.
  4. Align the scribe marks (3) previously made on the fan (2) hub and the motor shaft (1).

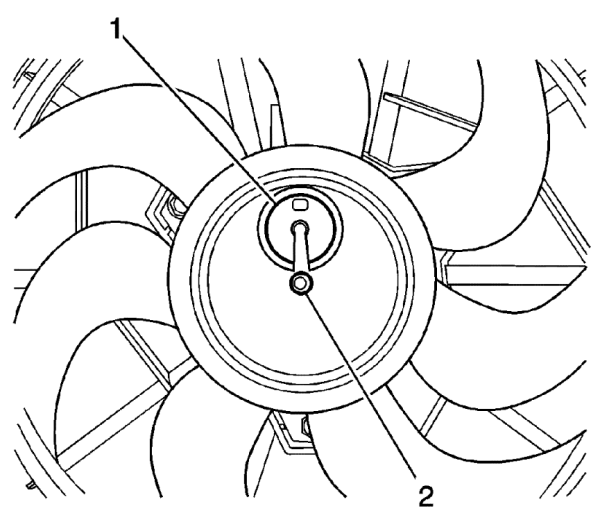

    Fig 4: Identifying Fan Retaining Clip And Motor Shaft
    G00491078Courtesy of SUZUKI OF AMERICA CORP.
    NOTE: Ensure that the scribe marks remain aligned during fan retaining clip (1) installation.
  5. Install a new fan retaining clip (1) to the motor shaft (2). Ensure the retaining clip (1) is fully seated.
  6. Install the fan shroud assembly to the vehicle. Refer to COOLING FAN AND SHROUD REPLACEMENT .
