Sunroof Control Module (CF5)
Connector Part Information
OEM: 7283-8398-40
Service: -
Description: 14-Way F 64 2.8 YESC Series (L-GY)
Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
Sunroof Control Module (CF5)

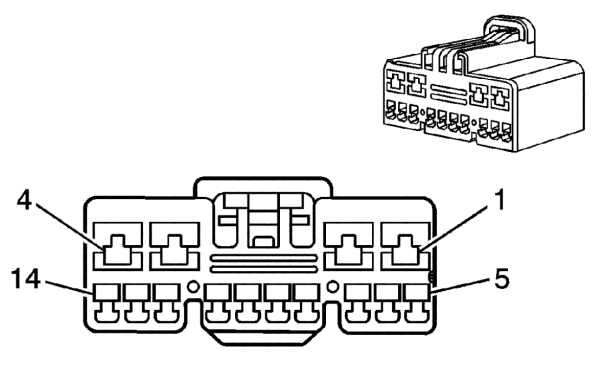

CONNECTOR PINOUTS REFERENCE
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 3.0 RD/WH | 4440 | Battery Positive Voltage |
| 2 | - | - | Not Used |
| 3 | 0.35 YE | 643 | Ignition Voltage |
| 4 | 3.0 BK | 850 | Ground |
| 5 | 0.35 OG/BK | 144 | Sunroof Switch Open Vent Signal |
| 6 | 0.35 BN | 100 | Sunroof Switch Open Signal |
| 7 | 0.35 D-GN | 2074 | Sunroof Switch Express Signal |
| 8-10 | - | - | Not Used |
| 11 | 0.35 D-BU | 128 | Low Reference |
| 12 | 0.35 BN/WH | 9061 | Not Used |
| 13 | 0.35 BK/WH | 9062 | Not Used |
| 14 | 0.35 WH | 9063 | Not Used |
