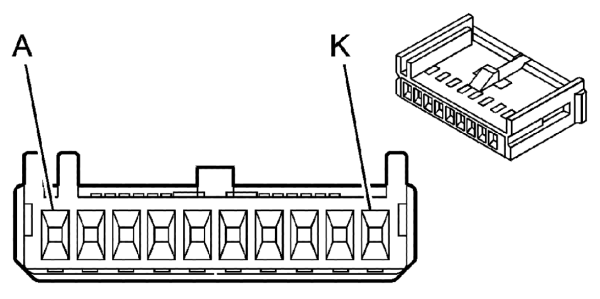

Inflatable Restraint Steering Wheel Module Coil X2
Connector Part Information
OEM: 15393433
Service: -
Description: 10-Way F Micro-Pack 064 Series (BK)
Terminal Part Information
Terminal/Tray: 7116-4111-02/9
Core/Insulation Crimp: E/2
Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)
CONNECTOR PINOUTS REFERENCE
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A-B | - | - | Not Used |
| C | 0.35 PU | 1375 | Steering Wheel Control Control |
| D | 0.35 GY | 1884 | Cruise Control Switch Signal |
| E | 0.35 D-BU | 1796 | Steering Wheel Controls Signal (UK3) |
| F | 0.35 D-GN/WH | 7158 | Cruise Control Indicator Dimming Signal |
| G | 0.35 PU/WH | 7005 | LED Dimming Signal |
| H | - | - | Not Used |
| J | 0.35 TN | 28 | Horn Relay Control |
| K | 0.35 BK | 1450 | Ground |
