Fuel Tank Pressure (FTP) Sensor
Connector Part Information
OEM: 13522407
Service: -
Description: 3-Way F Metri-Pack 150 Series Sealed (BK)
Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

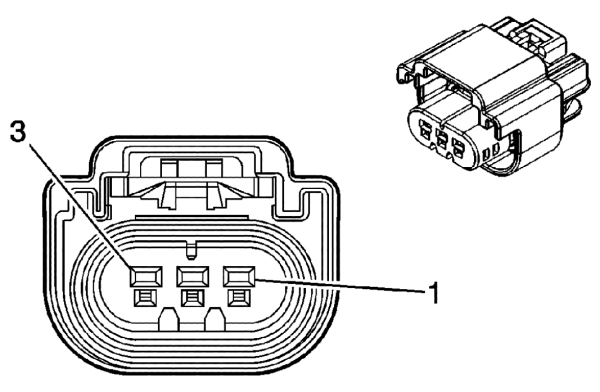

Fuel Tank Pressure (FTP) Sensor
CONNECTOR PINOUTS REFERENCE
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.5 D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| 2 | 0.5 BK | 2759 | Low Reference |
| 3 | 0.5 GY | 2709 | 5-Volt Reference |
