Front of Vehicle/Engine Compartment Component Views

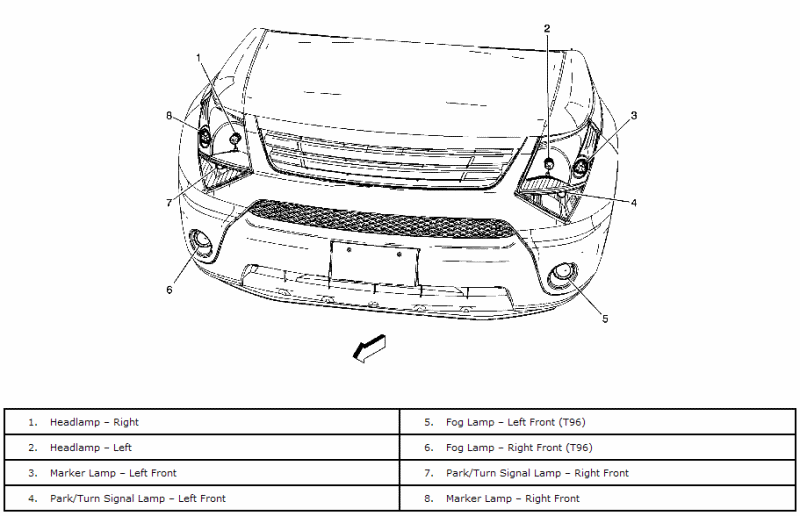

Front Exterior Lighting Components

Fig 1: Front Exterior Lighting Components

Courtesy of SUZUKI OF AMERICA CORP.

Left Front Frame Rail Components

Fig 2: Left Front Frame Rail Components

Courtesy of SUZUKI OF AMERICA CORP.

Front Engine Compartment Components

Fig 3: Front Engine Compartment Components

Courtesy of SUZUKI OF AMERICA CORP.

Left Front Engine Compartment Components 1 of 2

Fig 4: Left Front Engine Compartment Components (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Left Front Engine Compartment Components 2 of 2

Fig 5: Left Front Engine Compartment Components (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Right Front Engine Compartment Components

Fig 6: Right Front Engine Compartment Components

Courtesy of SUZUKI OF AMERICA CORP.

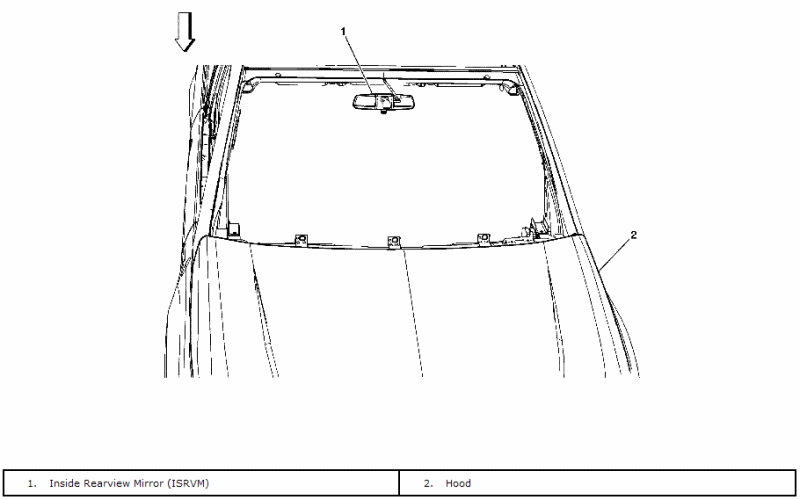

Windshield Components

Fig 7: Windshield Components

Courtesy of SUZUKI OF AMERICA CORP.

Core Support Components

Fig 8: Core Support Components

Courtesy of SUZUKI OF AMERICA CORP.

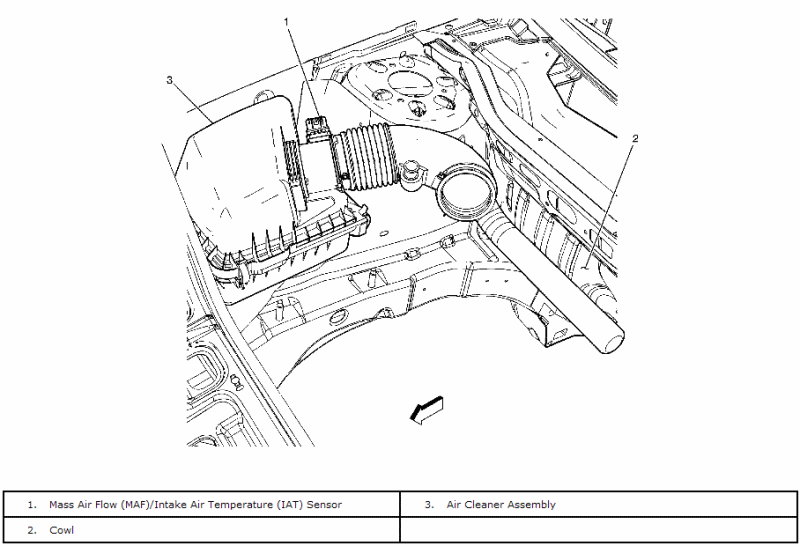

Left Front Cowl Components

Fig 9: Left Front Cowl Components

Courtesy of SUZUKI OF AMERICA CORP.
