Cylinder Head Installation - Left Side

Reference: CYLINDER HEAD ASSEMBLE

Special Tools

J 45059 Angle Meter

For equivalent regional tools, refer to SPECIAL TOOLS - ENGINE MECHANICAL - 3.6L (LY7) .

1. Ensure the cylinder head locating pins are securely mounted in the cylinder block deck face.
   Fig 1: Identifying Left Cylinder Head Gasket

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install a NEW left cylinder head gasket using the deck face locating pins for retention.
   Fig 2: Aligning Left Cylinder Head With Deck Face Locating Pins

   Courtesy of SUZUKI OF AMERICA CORP.
3. Align the left cylinder head with the deck face locating pins.
4. Place the left cylinder head in position on the deck face.

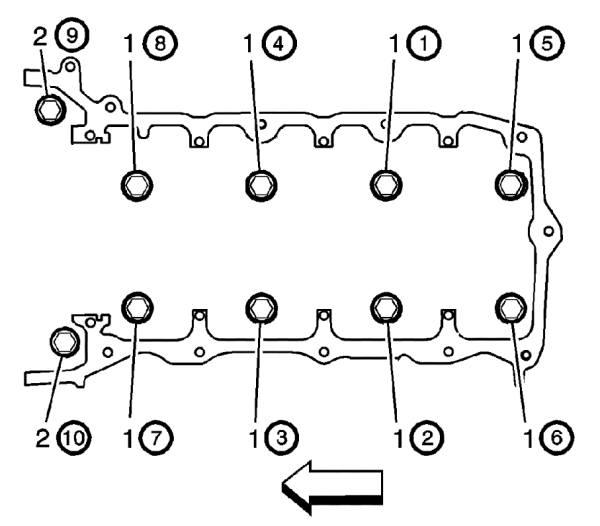

   Fig 3: Identifying Cylinder Head Bolts Tightening Sequence

   Courtesy of SUZUKI OF AMERICA CORP.
   CAUTION: Refer to FASTENER NOTICE .
   NOTE: DO NOT allow oil on the cylinder head bolt bosses.
   NOTE: DO NOT reuse the old cylinder head bolts.
5. Install new M11 cylinder head bolts.

   Tightening torque

   1. Tighten the M11 cylinder head bolts a first pass in sequence to 30 N.m (22 lb ft)  .
   2. Tighten the M11 cylinder head bolts a second pass in sequence an additional 150 degrees using the J 45059  .
6. Install the 2 front M8 left cylinder head bolts.

   Tightening torque

   1. Tighten the M8 cylinder head bolts a first pass to 15 N.m (11 lb ft)  .
   2. Tighten the M8 cylinder head bolts a second pass in sequence an additional 75 degrees using the J 45059  .

   Reference: VALVE LIFTER INSTALLATION - LEFT SIDE
