Automatic Transmission Shift Lock Control Solenoid
Courtesy of SUZUKI OF AMERICA CORP.

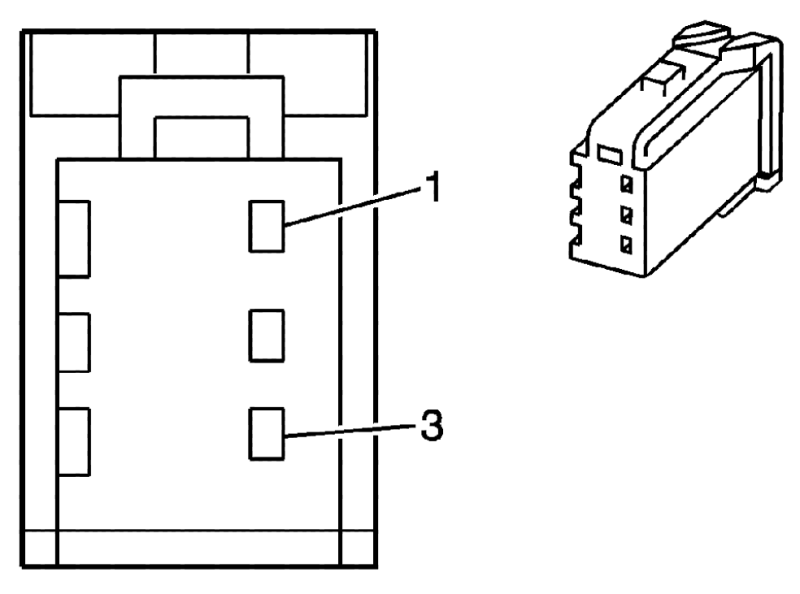

Connector Part Information
OEM: 90000223
Service: -
Description: 3-Way F (WH)
CONNECTOR PINOUTS REFERENCE
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-GN/WH |
1135 |
Automatic Transmission Shift Lock Control Solenoid Control |
| 2 |
- |
- |
Not Used |
| 3 |
0.35 BK |
1450 |
Ground |
