Transfer Case Brace Replacement

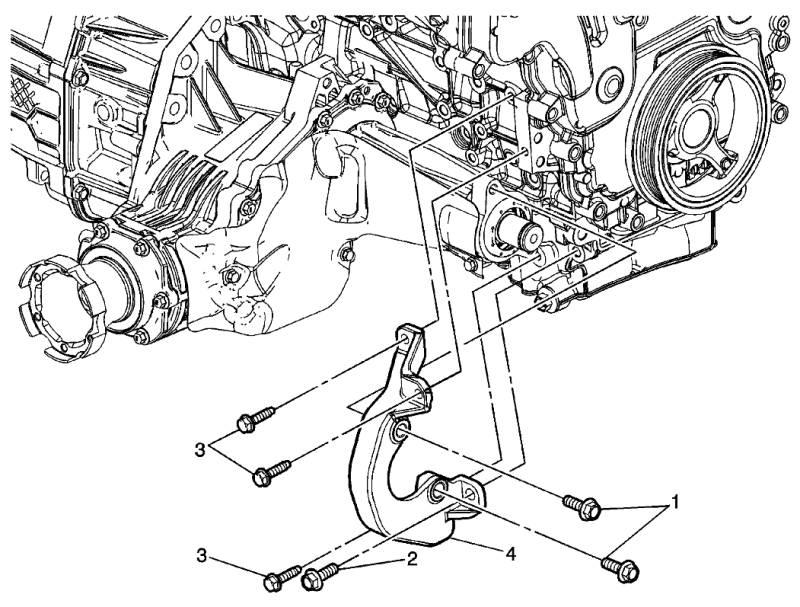

Fig 1: Identifying Transfer Case Mounting Bracket Bolt And Transfer Case Mounting Bracket

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS LIST

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the right wheel drive shaft. Refer to FRONT WHEEL DRIVE SHAFT REPLACEMENT .
1	Transfer Case Brace Bolt (Qty: 2) Tip: Tighten fasteners in specified sequential order. CAUTION: Refer to FASTENER NOTICE . Tightening torque 50 N.m (37 lb ft)
2	Transfer Case Brace Bolt Tip: Tighten fasteners in specified sequential order. Tightening torque 50 N.m (37 lb ft)
3	Transfer Case Brace Bolt (Qty: 3) Tip: Tighten fasteners in specified sequential order. Tightening torque 23 N.m (17 lb ft)
4	Transfer Case Brace
