Automatic Transmission Controls Schematics

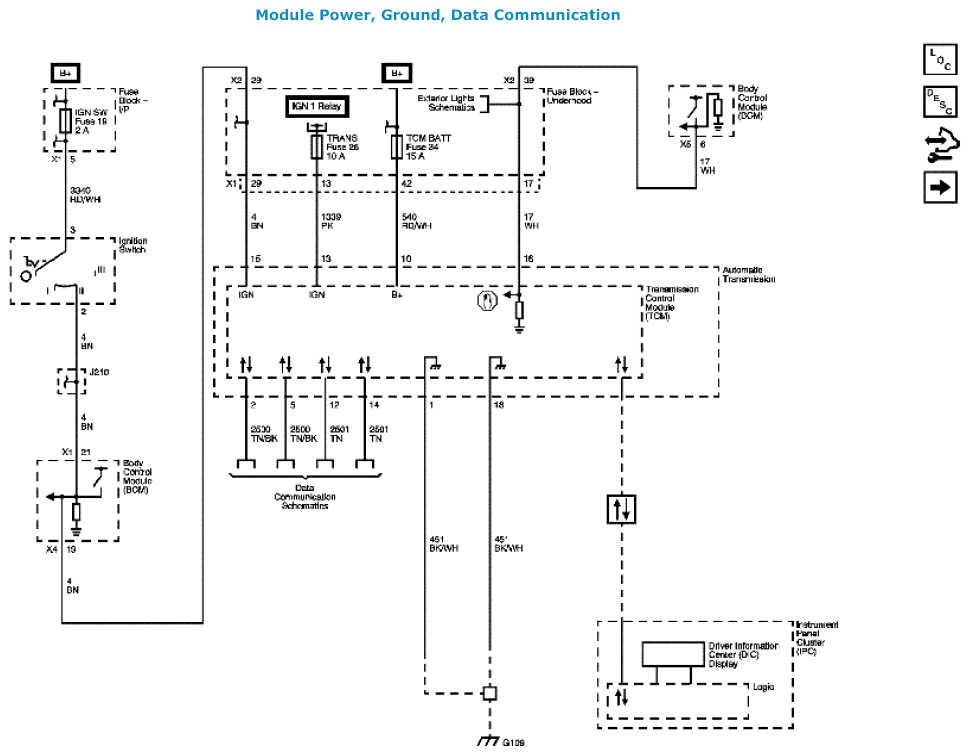

Fig 1: Transmission Controls Schematics - Module Power Ground Data Communication

Courtesy of SUZUKI OF AMERICA CORP.

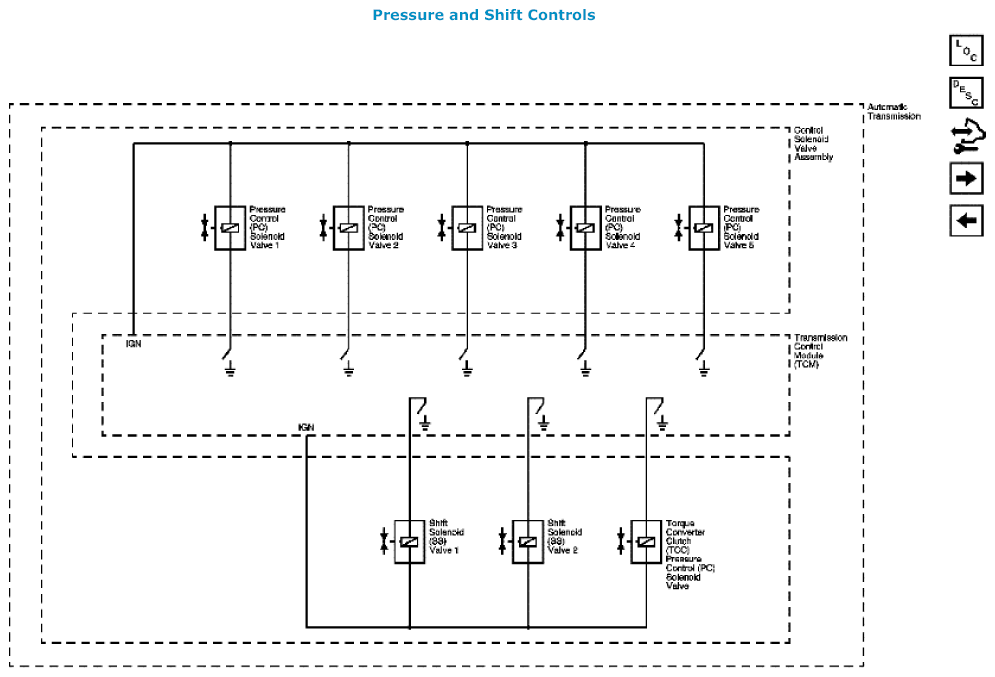

Fig 2: Transmission Controls Schematics - Pressure And Shift Controls

Courtesy of SUZUKI OF AMERICA CORP.

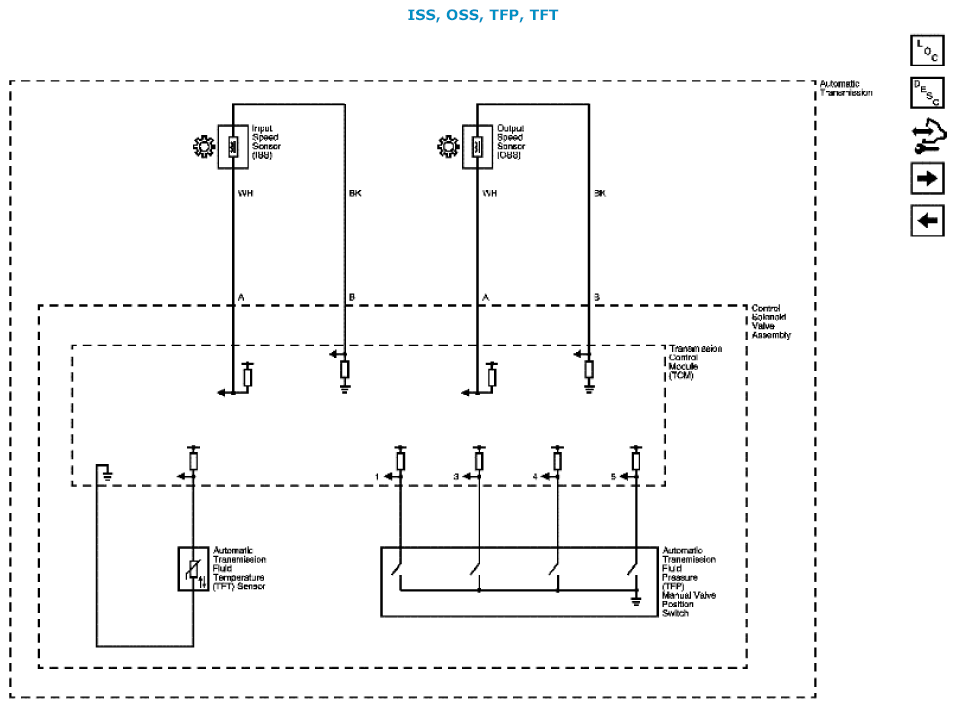

Fig 3: Transmission Controls Schematics - ISS, OSS TFP And TFT

Courtesy of SUZUKI OF AMERICA CORP.

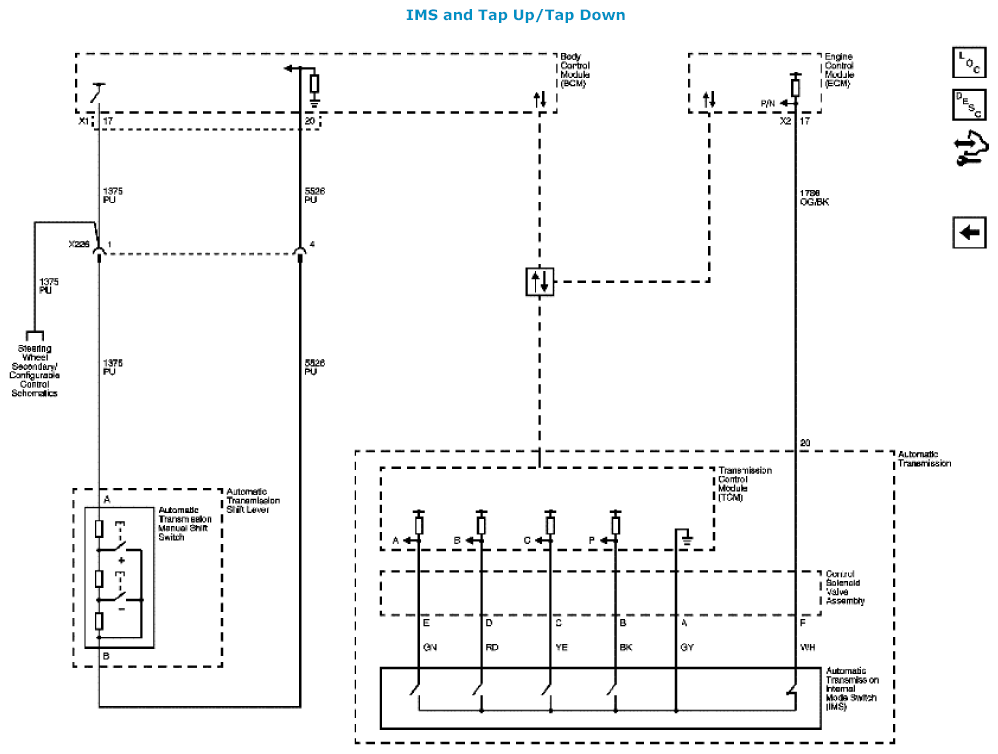

Fig 4: Transmission Controls Schematics - IMS And TAP Up And Tap Down

Courtesy of SUZUKI OF AMERICA CORP.
