Transmission Fluid Replacement

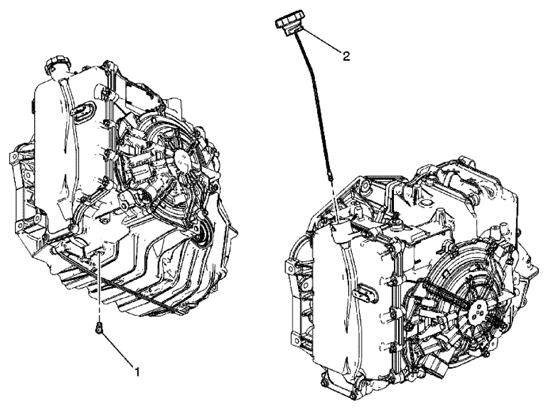

Fig 1: Identifying Fluid Drain Plug And Fluid Level Indicator

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Fluid Drain Plug CAUTION: Refer to FASTENER NOTICE . Tip: Place a drain pan capable of containing more than 5 quarts of fluid under the transmission before removing the plug to drain the fluid. Tightening torque 12 N.m (106 lb in)
2	Fluid Level Indicator Transmission will require approximately 5 quarts of fluid. Fill the transmission with fluid. Refer to TRANSMISSION FLUID CHECK .
