Torque Converter and Differential Housing Assembly Disassemble

Reference: TORQUE CONVERTER AND DIFFERENTIAL HOUSING, FRONT DIFFERENTIAL TRANSFER DRIVE GEAR, AND FRONT DIFFERENTIAL CARRIER REMOVAL

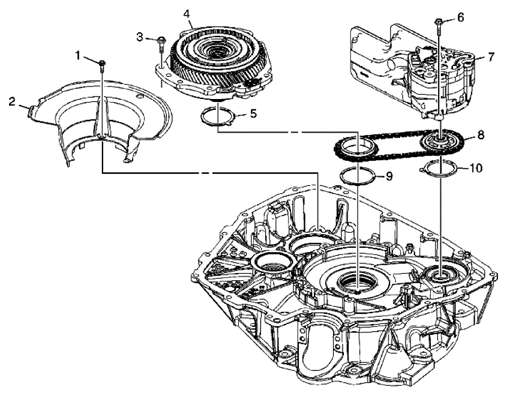

Fig 1: Disassembling View Of Differential Housing Assembly

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	Front Differential Carrier Baffle Bolt M6 x 25
2	Front Differential Carrier Baffle
3	Front Differential Transfer Drive Gear Support Bolt M8 x 25 (Qty: 9)
4	Front Differential Transfer Drive Gear Support Assembly
5	Drive Sprocket Thrust Washer
6	A/Trans Fluid Pump Bolt M6 x 25 (Qty: 3)
7	A/Trans Fluid Pump Assembly
8	Drive Link Assembly Tip:  Link and sprockets will be removed as an assembly.
9	Drive Sprocket Thrust Washer Tip:  Drive sprocket thrust washer may be stuck to the torque converter housing.
10	Driven Sprocket Thrust Washer

Reference: TORQUE CONVERTER HOUSING CLEANING AND INSPECTION

Reference: FRONT DIFFERENTIAL TRANSFER DRIVE GEAR SUPPORT ASSEMBLY DISASSEMBLE

Reference: TRANSMISSION FLUID PUMP CLEANING AND INSPECTION
