Transfer Drive Gear Assembly Installation
Transfer Drive Gear Assembly Installation

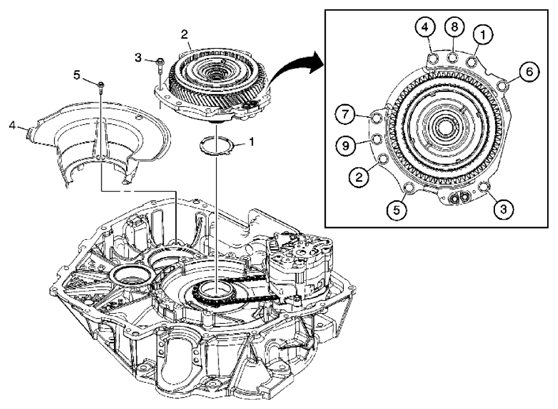

COMPONENT NAME REFERENCE
| Callout | Component Name |
|---|---|
| 1 | Drive Sprocket Thrust Washer |
| 2 | Front Differential Transfer Drive Gear Support Assembly |
| 3 | Front Differential Transfer Drive Gear Support Bolt M8 x 25 (Qty: 9)
CAUTION:
Refer to FASTENER NOTICE
. Procedure Tighten in sequence shown. Tightening torque 10 N.m (89 lb in) plus 50 degrees ± 4 degrees. Special Tools: J 45059 Angle Meter For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 . |
| 4 | Front Differential Carrier Baffle |
| 5 | Front Differential Carrier Baffle Bolt M6 x 25 Tightening torque 12 N.m (106 lb in). |
