Shift Lock Control Solenoid Replacement

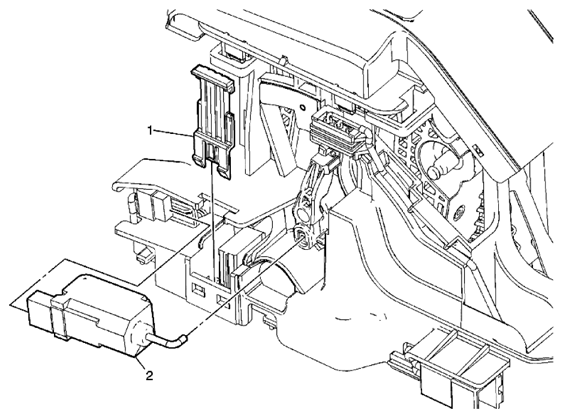

Fig 1: Identifying Shift Lock Control Solenoid
G06490220Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME REFERENCE

Callout Component Name
Preliminary Procedures
  1. Remove the console side trim panel. Refer to FRONT FLOOR CONSOLE SIDE TRIM PANEL REPLACEMENT - RIGHT SIDE .
  2. Disconnect the brake transaxle shift interlock (BTSI) solenoid electrical harness connector.
1 Brake Transaxle Shift Interlock Solenoid Retainer
2 Brake Transaxle Shift Interlock Solenoid
