Lift Plate and Holding Fixture Installation

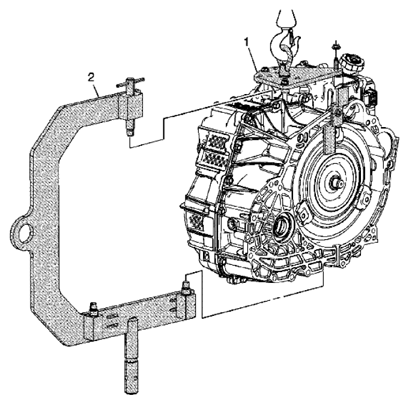

Fig 1: Installation Of Transmission Lift Plate

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	DT-47811-A Transmission Lift Plate WARNING: Handle with care, the transmission assembly weighs over 200 lbs. Bodily injury could occur if not handled properly. Tip: After Installation of lift plate, raise the transmission with an overhead hoist. Tightening torque 12 N.m (9 lb ft) Special Tools DT-47811-A Transmission Lift Plate For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
2	J-46625 Transmission Holding Fixture CAUTION: Refer to FASTENER NOTICE . Tip: Adjust mounting block on fixture to match bosses on case, then tighten bolts to: Tightening torque 13 N.m (10 lb ft) Special Tools J-46625 Transmission Holding Fixture For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .

Callout

Component Name

DT-47811-A Transmission Lift Plate

WARNING: Handle with care, the transmission assembly weighs over 200 lbs. Bodily injury could occur if not handled properly.

Tip: After Installation of lift plate, raise the transmission with an overhead hoist.
Tightening torque
12 N.m (9 lb ft)
Special Tools
DT-47811-A Transmission Lift Plate
For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .

J-46625 Transmission Holding Fixture

CAUTION: Refer to FASTENER NOTICE .

Tip: Adjust mounting block on fixture to match bosses on case, then tighten bolts to:
Tightening torque
13 N.m (10 lb ft)
Special Tools
J-46625 Transmission Holding Fixture
For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
