Seal Installation

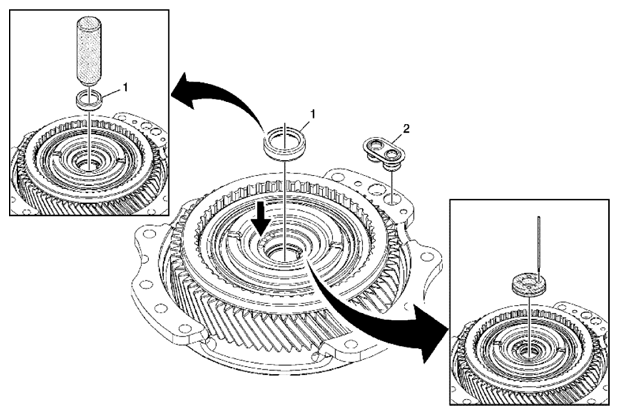

Fig 1: Identifying Seal Installation

Courtesy of SUZUKI OF AMERICA CORP.

Seal Installation

COMPONENT NAME REFERENCE

Callout	Component Name
1	Front Differential Transfer Drive Gear Support Seal CAUTION: Ensure staking does not line up with lubrication holes or the holes may be damaged. Stop driving the seal once it bottoms out to avoid seal damage. Tip: The fluid seal assembly must be staked in place using DT-49131 seal staking tool to ensure proper seal retention. Special Tools J-46627-A Seal Installer DT-49131 Seal Staking Tool For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
2	Front Differential Transfer Drive Gear Support Torque Converter Fluid Seal Assembly

Callout

Component Name

Front Differential Transfer Drive Gear Support Seal

CAUTION:

Ensure staking does not line up with lubrication holes or the holes may be damaged.
Stop driving the seal once it bottoms out to avoid seal damage.

Tip: The fluid seal assembly must be staked in place using DT-49131 seal staking tool to ensure proper seal retention.
Special Tools

Front Differential Transfer Drive Gear Support Torque Converter Fluid Seal Assembly
