Fluid Passage Tube Installation

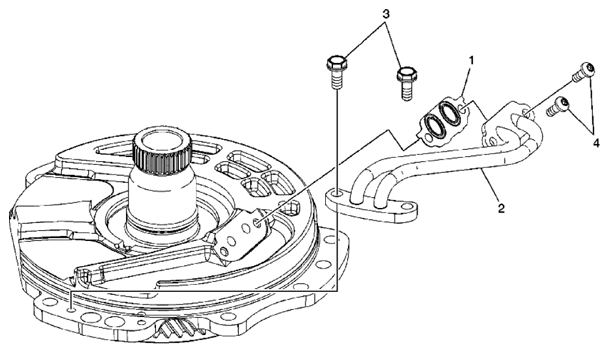

Fig 1: Identifying Fluid Passage Tube And Gasket

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	Front Differential Transfer Drive Gear Support Fluid Passage Tube Gasket
2	Fluid Passage Tube Assembly
3	Front Differential Transfer Drive Gear Fluid Passage Tube Bolt M6 x 15 (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tighten 12 N.m (106 lb in)
4	Front Differential Transfer Drive Gear Fluid Passage Tube Bolt M5 x 12 (Qty: 2) Tighten 7 N.m (62 lb in)
