Drive Support Seal Installation
Drive Support Seal Installation

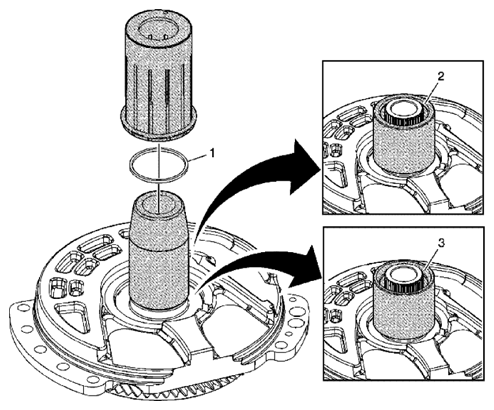

COMPONENT NAME REFERENCE
| Callout | Component Name |
|---|---|
| 1 | Front Differential Transfer Drive Gear Support Seal Tip: A NEW seal must be installed. Special Tools J-46624 Support Seal Installer For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 . |
| 2 | Small Chamfer Faces Up
CAUTION:
To avoid damaging the seal, first place J 46624-1 with the small chamfer end facing up and leave in place for at least 60 seconds.
|
| 3 | Large Chamfer Faces Up Tip: Turn J 46624-1 which is part of J-46624 seal installer, over with the large chamfer end facing up for 60 seconds to ensure that the seal has been properly sized. |
