Fluid Cooler Inlet Hose Replacement

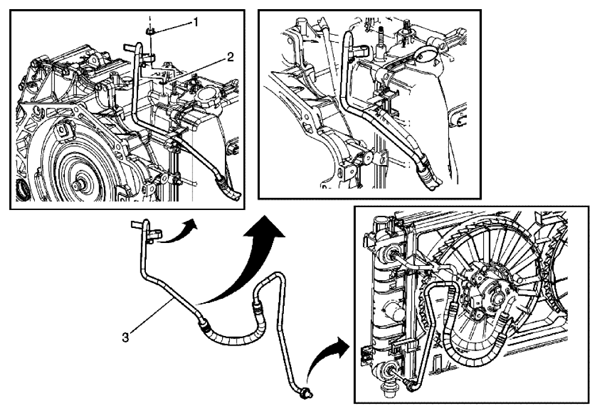

Fig 1: Identifying Fluid Cooler Inlet Hose

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedure Remove the battery tray. Refer to BATTERY TRAY REPLACEMENT .
1	Transmission Fluid Cooler Pipe Nut CAUTION: Refer to FASTENER NOTICE . Tightening torque 22 N.m (16 lb ft)
2	Sealing Washer Tip: Remove and discard the sealing washer.
3	Front Transmission Fluid Cooler Inlet Hose Procedure: Disconnect the transmission line from the radiator and transmission. Refer to TRANSMISSION FLUID COOLER HOSE/PIPE QUICK-CONNECT FITTING DISCONNECTION AND CONNECTION . Note the routing of the transmission line to ensure proper installation. Remove the transmission line from the clips securing the line to the transmission and fan shroud. Inspect the transmission fluid level. Refer to TRANSMISSION FLUID CHECK .
