Control Valve Channel Plate Cleaning and Inspection

Reference: CONTROL VALVE BODY ASSEMBLY DISASSEMBLE

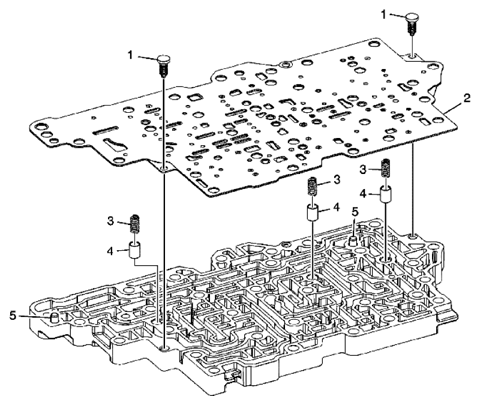

Fig 1: Identifying Control Valve Channel Plate

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
CAUTION: After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure. CAUTION: Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component.
1	Control Valve Body Spacer Plate Retainer (Qty: 2)
2	Control Valve Upper Body Spacer Plate Assembly
3	Actuator Feed Accumulator Spring (Qty: 3)
4	Actuator Feed Accumulator Piston (Qty: 3)
5	Control Valve Body Locating Pin (Qty: 2) Tip:  Inspect locating pins for proper installed height of 4.25 mm (0.17 in).

Reference: CONTROL VALVE BODY ASSEMBLY ASSEMBLE
