Wire Routing and Connector Locations

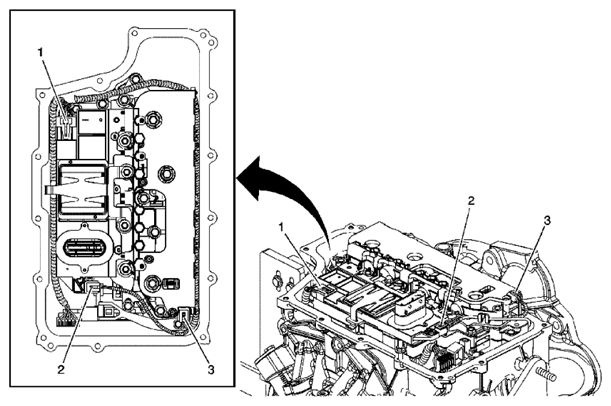

Fig 1: Identifying Wire Routing And Connector Locations
G06490383Courtesy of SUZUKI OF AMERICA CORP.

Wire Routing and Connector Locations

COMPONENT NAME REFERENCE

Callout Component Name
Preliminary Procedure
Route all wires as shown.
1 Shift Position Switch Connector
2 Output Speed Sensor Connector
3 Input Speed Sensor Connector
