Output Speed Sensor and Valve Body Installation

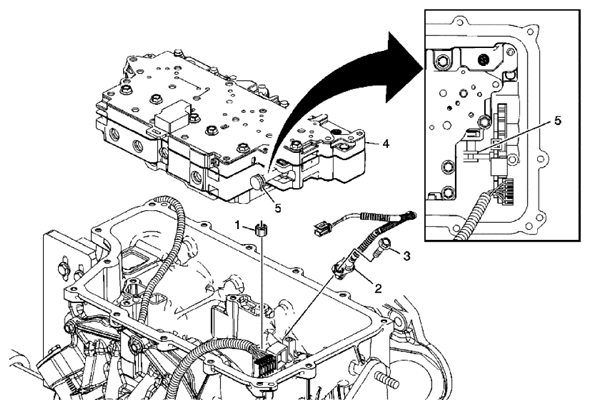

Fig 1: Identifying Output Speed Sensor And Valve Body Installation

G06490379

Courtesy of SUZUKI OF AMERICA CORP.

Output Speed Sensor and Valve Body Installation

COMPONENT NAME REFERENCE

Callout	Component Name
1	1-2-3-4 Clutch Fluid Passage Seal
2	A/Trans Output Speed Sensor Assembly
3	A/Trans Output Speed Sensor Assembly Bolt M6 x 25 CAUTION: Refer to FASTENER NOTICE . Tightening torque 12 N.m (9 lb ft)
4	Control Valve Body Assembly
5	Manual Valve Align the manual valve to the detent lever assembly. Removing the manual shaft assembly pin will aid in aligning the manual valve to the detent lever. Install the manual shaft pin after the valve body assembly is installed using J 41229 pin installer, if it was not installed previously. Refer to MANUAL SHIFT DETENT LEVER WITH SHAFT POSITION SWITCH ASSEMBLY AND PARK PAWL ACTUATOR REMOVAL . Special Tools J 41229 Manual Shaft Pin Installer For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
