Lower and Upper Body Assemble

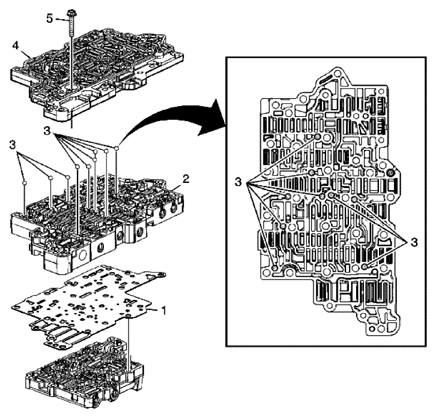

Fig 1: Identifying Lower And Upper Body Assemble

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	Control Valve Lower Body Spacer Plate Assembly Tip: Inspect the upper channel plate bolt through holes for damage or burnelling. Any damage around the PCS switch feed holes could cause leakage around the PCS switch seals. Replace as necessary.
2	Control Valve Upper Body Assembly
3	Control Valve Body Ball Check Valve (Qty: 9)
4	Control Valve Channel Plate Assembly
5	Control Valve Body Bolt 6 x 55 (Qty: 1) CAUTION: Refer to FASTENER NOTICE . Tightening torque 12 N.m (9 lb ft)
