ISS Removal

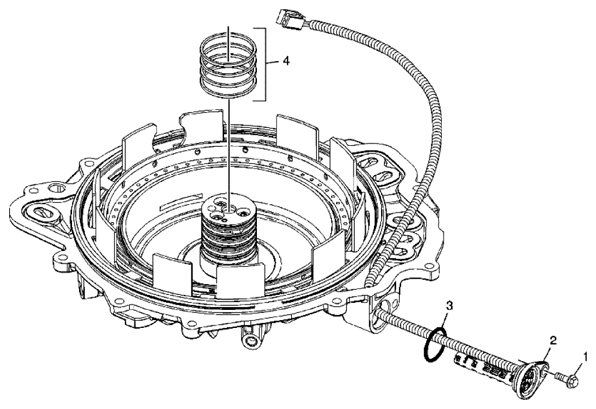

Fig 1: Identifying Case Cover Assembly

Courtesy of SUZUKI OF AMERICA CORP.

ISS Removal

COMPONENT NAME REFERENCE

Callout	Component Name
1	A/Trans Input Speed Sensor Bolt M6 x 25
2	A/Trans Input Speed Sensor
3	A/Trans Input Speed Sensor Seal Tip: Discard the seal.
4	3-5 Reverse and 4-5-6 Clutch Fluid Seal Ring Tip: Discard the seals.
