Clean and Inspect

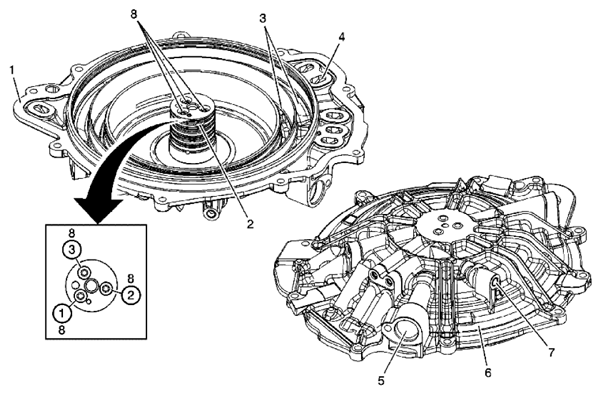

Fig 1: Cleaning Case Cover Assembly

G06490365

Courtesy of SUZUKI OF AMERICA CORP.

Clean and Inspect

COMPONENT NAME REFERENCE

Callout	Component Name
CAUTION: After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure. CAUTION: Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. Preliminary Procedures Thoroughly clean the case cover assembly, including threads, with clean solvent. Clean gasket sealing surfaces. Remove all residual gasket material. Inspect all threaded holes. If necessary, repair any thread damage.
1	Gasket Sealing Surface
2	Fluid Passages
3	Piston Bores
4	Cover to Case Passages
5	A/Trans Input Speed Sensor Assembly Bore
6	Cover Casting
7	Passage Cup Plugs
8	Input Shaft Support Bolts Procedure Tightened bolts in sequence. Tighten 12 N.m (106 lb in).

Reference: CASE COVER ASSEMBLY ASSEMBLE
