2-6 Clutch Piston Removal

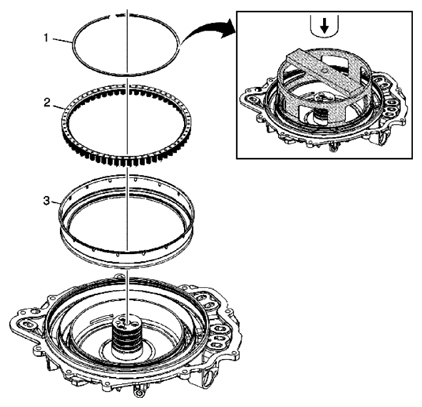

Fig 1: Identifying 2-6 Clutch Piston Removal

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	2-6 Clutch Spring Retaining Ring Special Tools J-46632 Spring Compressor For equivalent regional tools, refer to SPECIAL TOOLS - AUTOMATIC TRANSMISSION - 6T70/6T75 .
2	2-6 Clutch Spring Assembly
3	2-6 Clutch Piston Tip: Inspect piston seals for damage and/or wear. Piston is reusable.
