Automatic Transmission Fluid Pressure Test Hole Plug Replacement

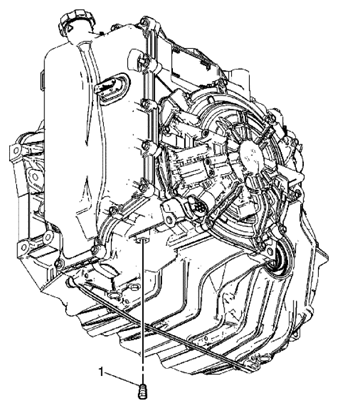

Fig 1: Identifying Automatic Transmission Fluid Pressure Test Hole Plug

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedure  Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Fluid Pressure Test Plug CAUTION: Refer to COMPONENT FASTENER TIGHTENING NOTICE . Tightening torque  12 N.m (106 lb in)
