3-5-Reverse and 4-5-6 Clutch Housing Installation

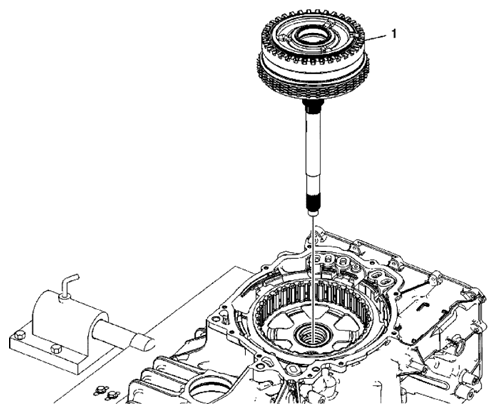

Fig 1: Identifying 3-5-Reverse And 4-5-6 Clutch Housing

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	3-5 Reverse and 4-5-6 Clutch Assembly Tip:  Rotate the assembly back and forth to align the 3-5 reverse clutch plates with the reaction sun gear housing.

Reference: CASE COVER ASSEMBLY DISASSEMBLE
