2-6 Clutch Plate Installation

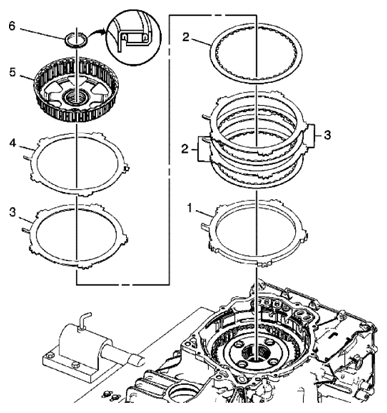

Fig 1: Identifying 2-6 Clutch Plate Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
1	2-6 Clutch Backing Plate Tip: The tab on the clutch plate faces the bottom of the case.
2	2-6 Clutch (w/Friction Material) Plate Assembly (Qty: 3)
3	2-6 Clutch Plate (Qty: 3) Tip: The tab on the clutch plate faces the bottom of the case.
4	2-6 Clutch Cushion Spring
5	Reaction Sun Gear Assembly
6	2-6 Clutch Hub Thrust Bearing Assembly Tip: Note location of the orientation lip on bearing. All thrust bearings can only be assembled one way.
