Machine Set-up

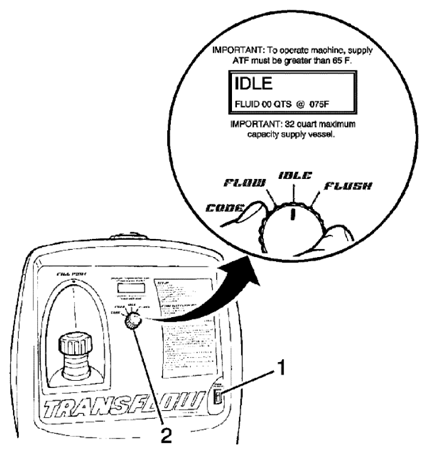

Fig 1: Identifying Main Power Switch And Main Function Switch

Courtesy of SUZUKI OF AMERICA CORP.

Verify that the main power switch (1) is in the OFF position.
Place the main function switch (2) in the IDLE position.

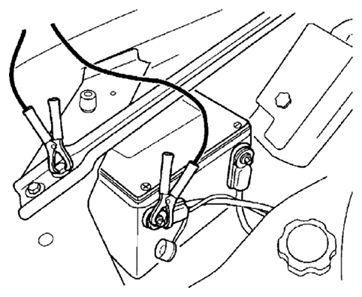

Fig 2: Identifying Battery Terminal Connection
Courtesy of SUZUKI OF AMERICA CORP.
Connect J 45096 flush and flow test tool to the vehicle 12 V DC power source by connecting the red battery clip to the positive, +, battery post on the vehicle and connect the negative lead to a known good chassis ground.
Turn the main power switch to the ON position.

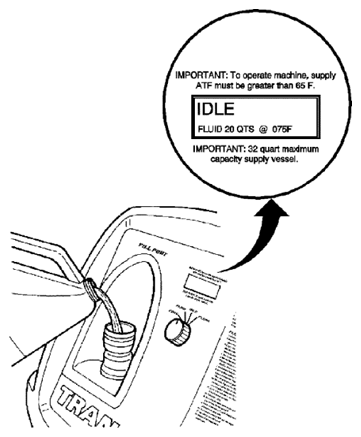

Fig 3: Filling Supply Tank
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not overfill the supply vessel. Damage to the unit may result. To verify the fluid level, view the LCD screen display while filling the unit, to ensure the fluid level does not exceed 30 L (32 qt).
Fill the supply tank with Dexron®VI through the fill port.
Reinstall and tighten the fill cap.

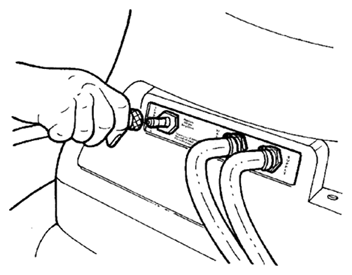

Fig 4: Connecting Shop Air Supply Hose
Courtesy of SUZUKI OF AMERICA CORP.
Connect a shop air supply hose to the quick-disconnect on the rear panel marked SUPPLY AIR.
