Forward Flush

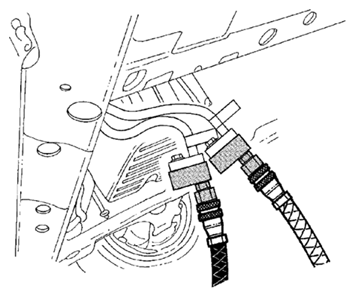

Fig 1: Disconnecting Supply And Waste Hoses From Vehicle Cooler Lines
G06490209Courtesy of SUZUKI OF AMERICA CORP.
  1. Disconnect the supply and waste hoses from the vehicle cooler lines. Reverse the supply and waste hoses to provide a normal flow direction.

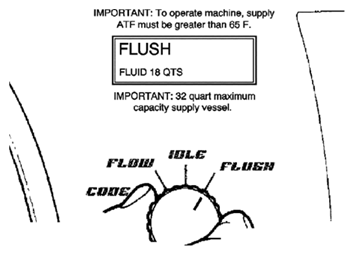

    Fig 2: Identifying Main Function Switch To FLUSH Position
    G06490210Courtesy of SUZUKI OF AMERICA CORP.
  2. Turn the main function switch to the FLUSH position and allow machine to operate for 30 seconds.
