Seal Locations

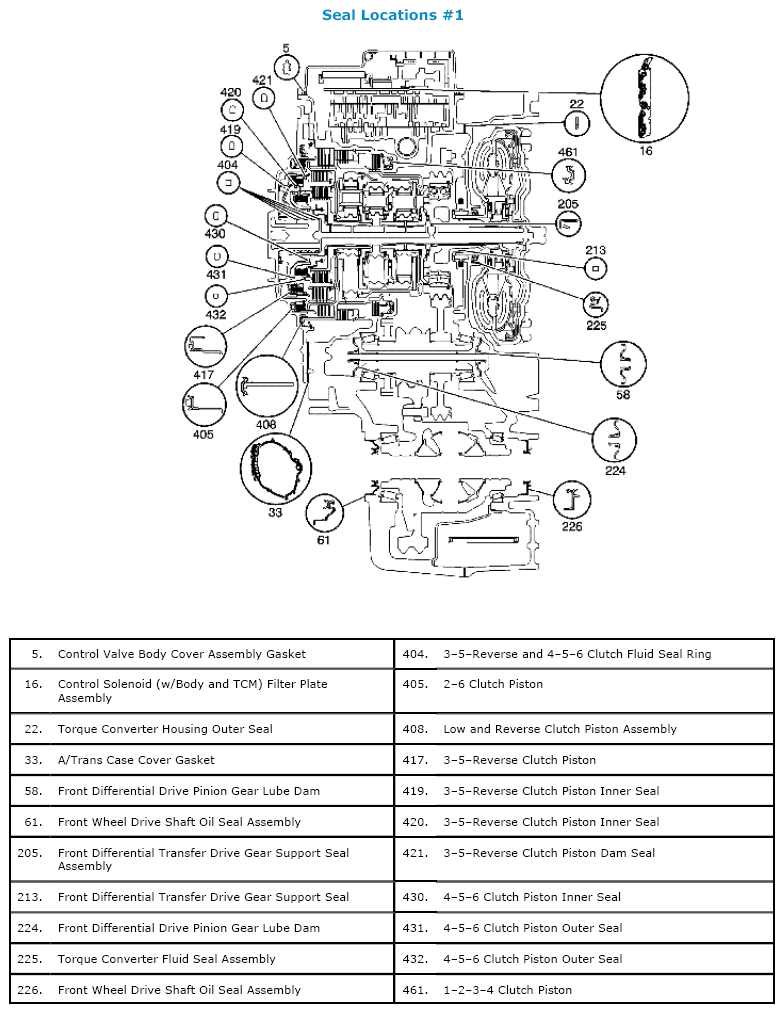

Fig 1: Identifying Seal Locations (1 Of 2)
G06490176Courtesy of SUZUKI OF AMERICA CORP.

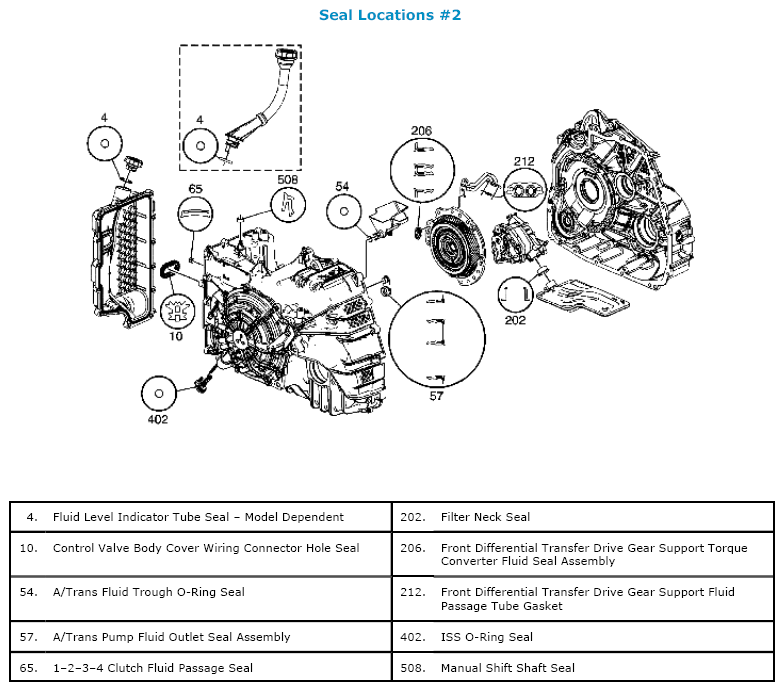

Fig 2: Identifying Seal Locations (2 Of 2)
G06490177Courtesy of SUZUKI OF AMERICA CORP.
