Fluid Passages

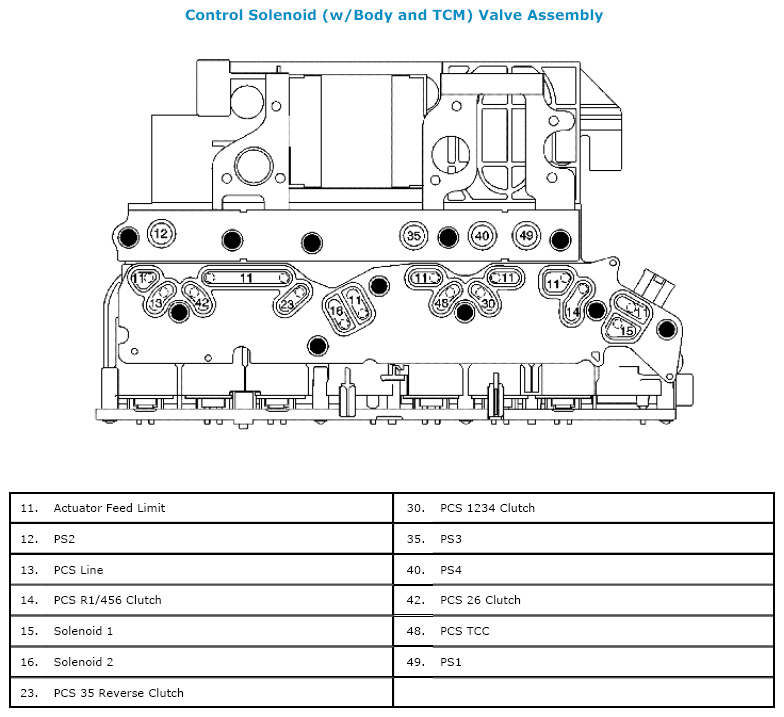

Fig 1: Identifying Control Solenoid (W/ Body And TCM) Valve Assembly - Fluid Passages

Courtesy of SUZUKI OF AMERICA CORP.

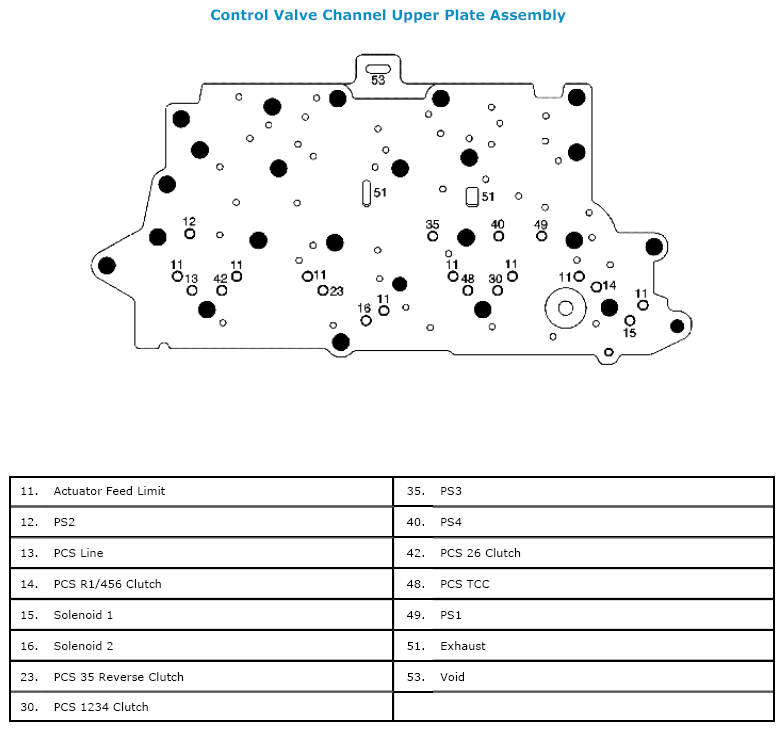

Fig 2: Identifying Control Valve Channel Upper Plate Assembly - Fluid Passages

Courtesy of SUZUKI OF AMERICA CORP.

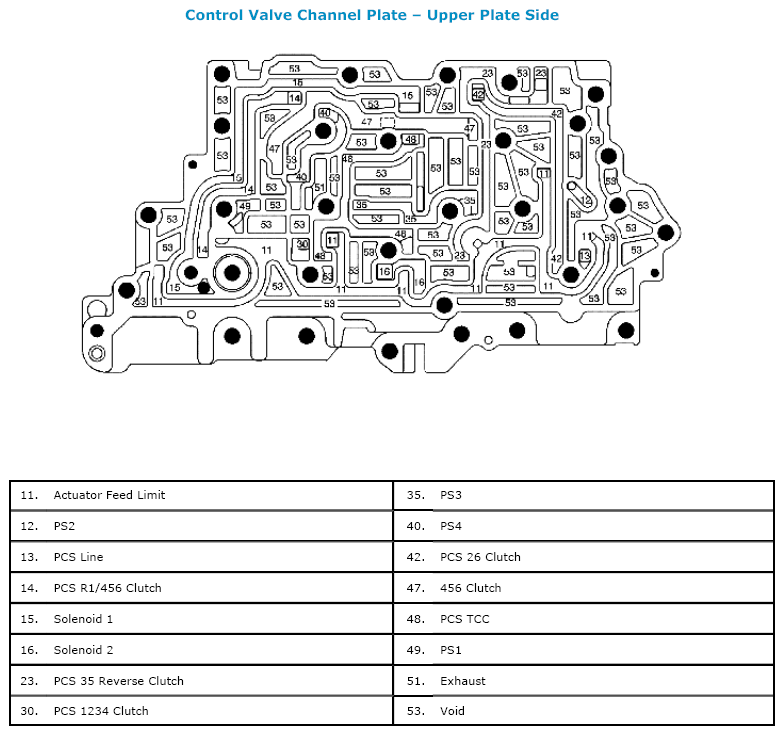

Fig 3: Identifying Control Valve Channel Plate - Upper Plate Side (Fluid Passages)

Courtesy of SUZUKI OF AMERICA CORP.

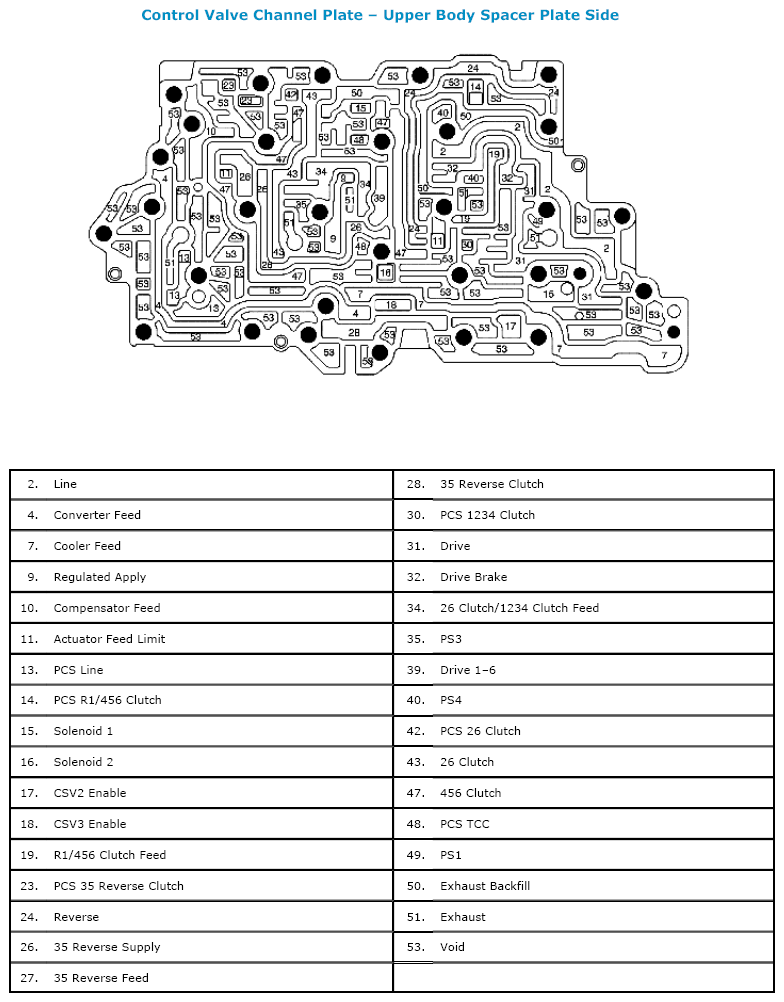

Fig 4: Identifying Control Valve Channel Plate - Upper Body Spacer Plate Side (Fluid Passages)

Courtesy of SUZUKI OF AMERICA CORP.

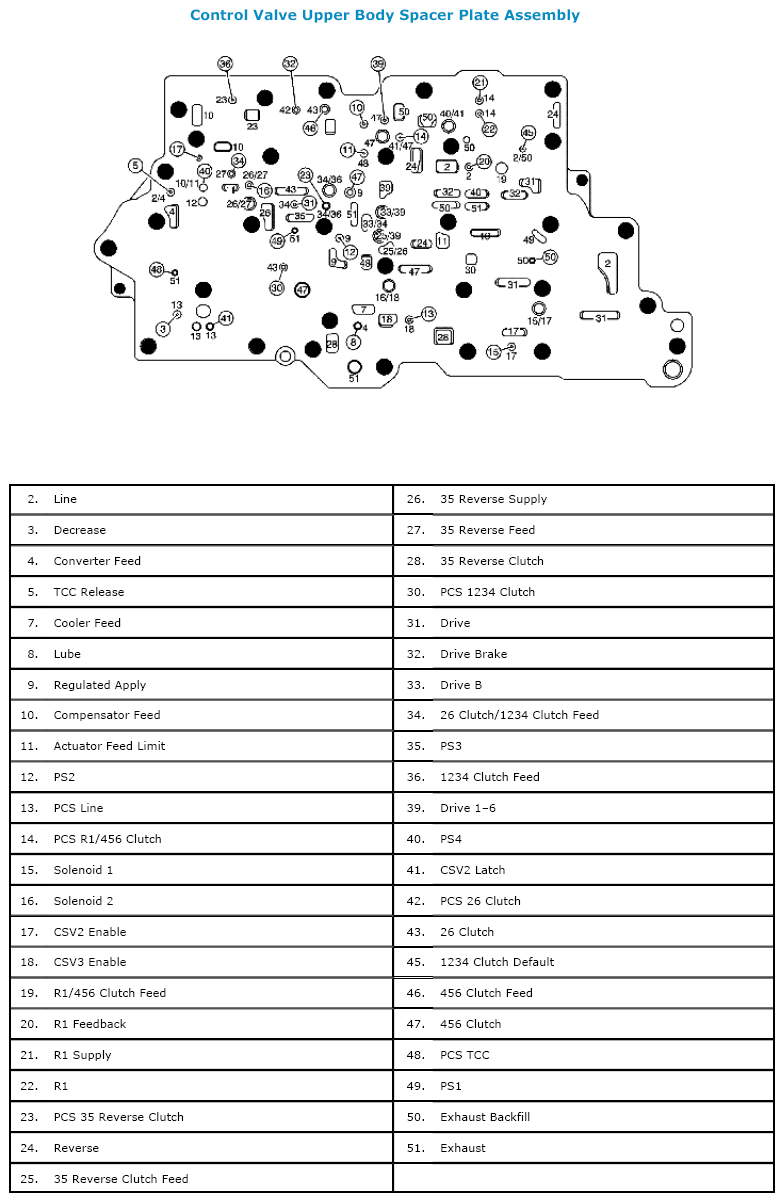

Fig 5: Identifying Control Valve Upper Body Spacer Plate Assembly (Fluid Passages)

Courtesy of SUZUKI OF AMERICA CORP.

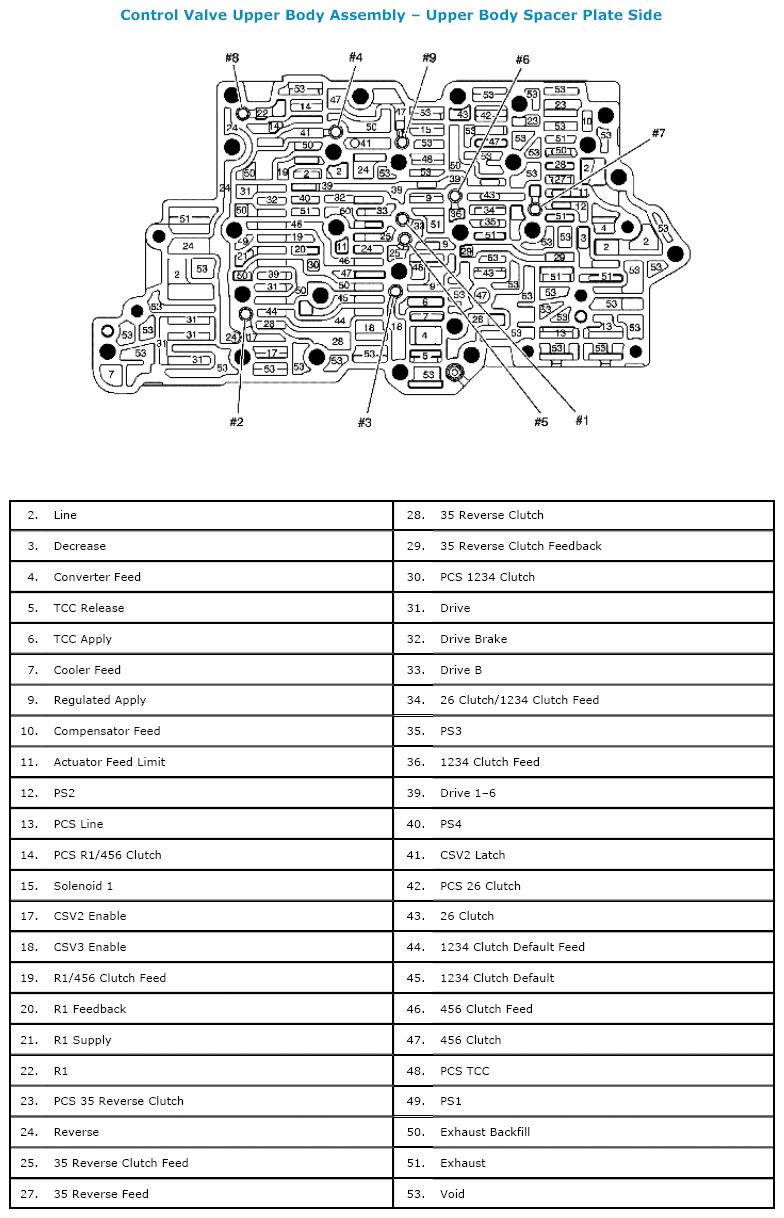

Fig 6: Identifying Control Valve Upper Body Assembly - Upper Body Spacer Plate Side (Fluid Passages)

Courtesy of SUZUKI OF AMERICA CORP.

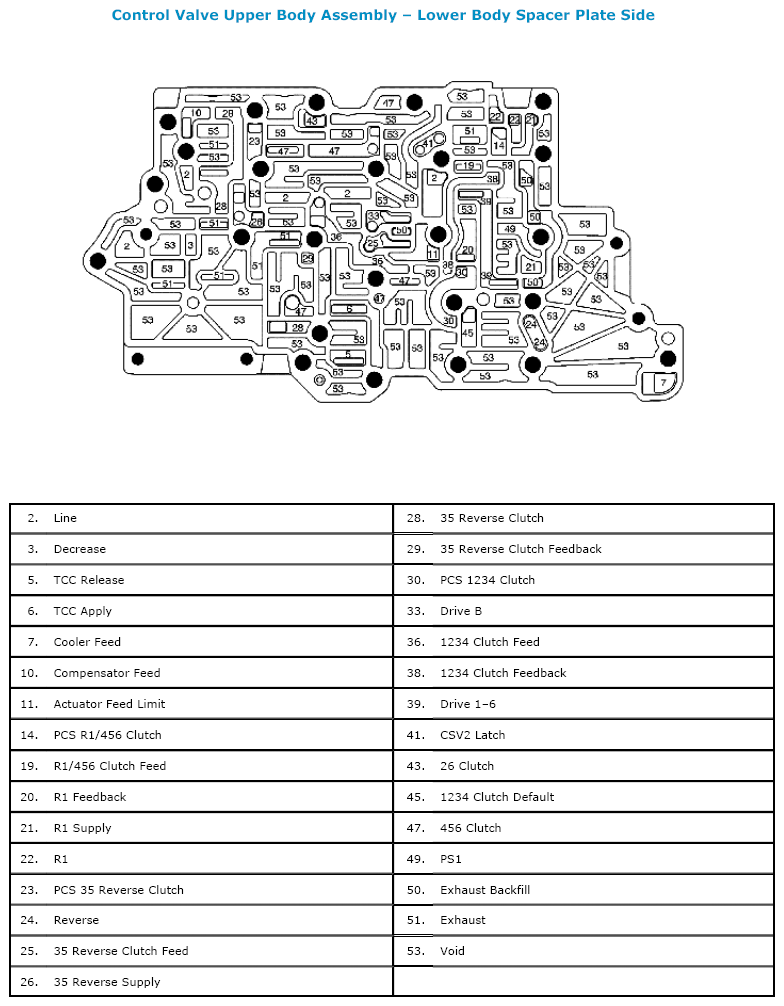

Fig 7: Identifying Control Valve Upper Body Assembly - Lower Body Spacer Plate Side (Fluid Passages)

Courtesy of SUZUKI OF AMERICA CORP.

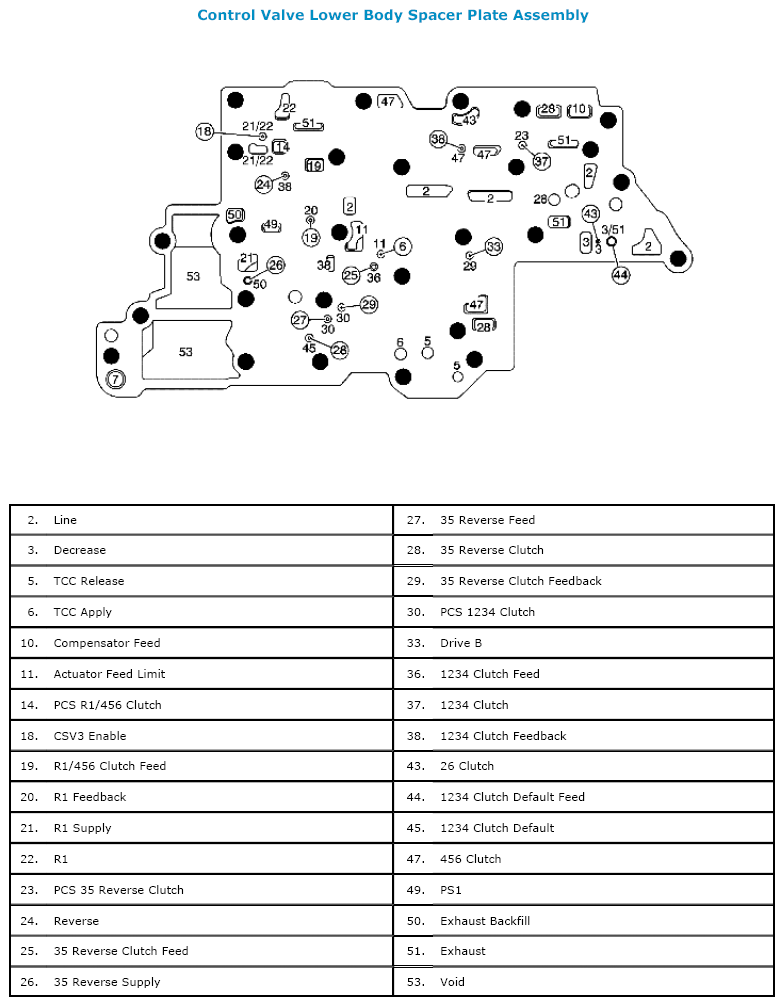

Fig 8: Identifying Control Valve Lower Body Spacer Plate Assembly

Courtesy of SUZUKI OF AMERICA CORP.

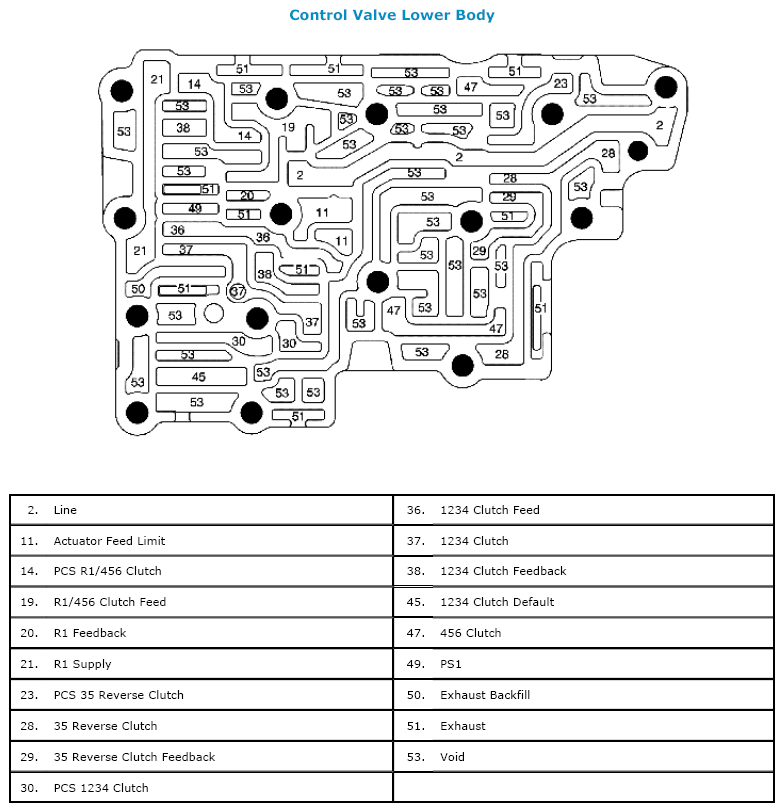

Fig 9: Identifying Control Valve Lower Body (Fluid Passages)

Courtesy of SUZUKI OF AMERICA CORP.

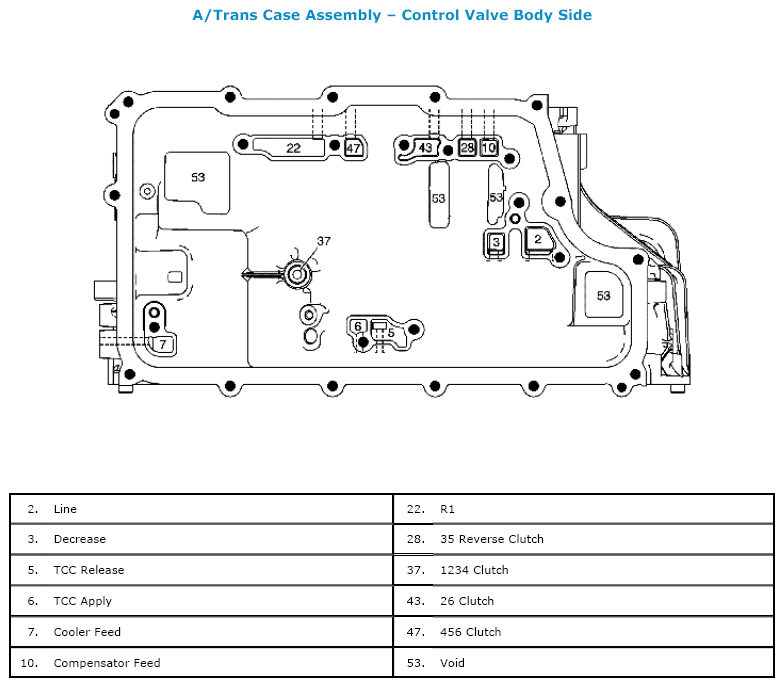

Fig 10: Identifying A/Trans Case Assembly - Control Valve Body Side

Courtesy of SUZUKI OF AMERICA CORP.

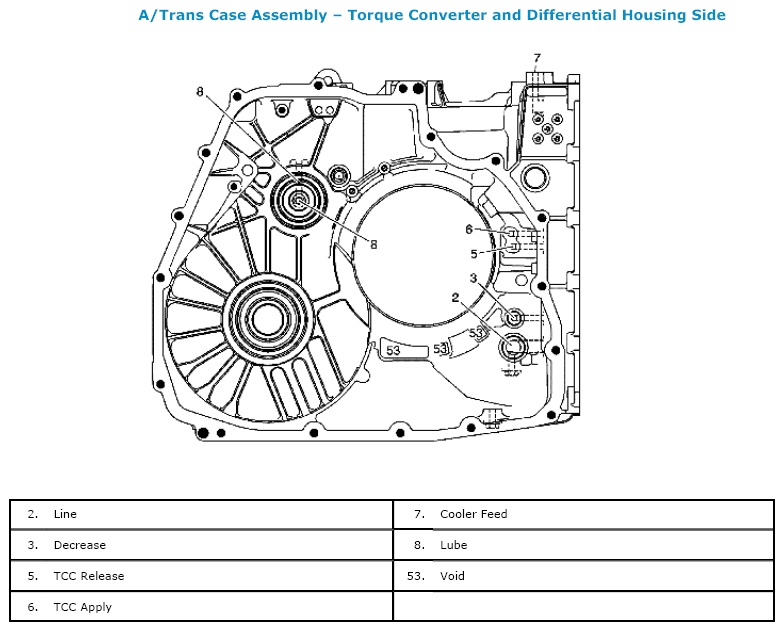

Fig 11: Identifying A/Trans Case Assembly - Torque Converter And Differential Housing Side

Courtesy of SUZUKI OF AMERICA CORP.

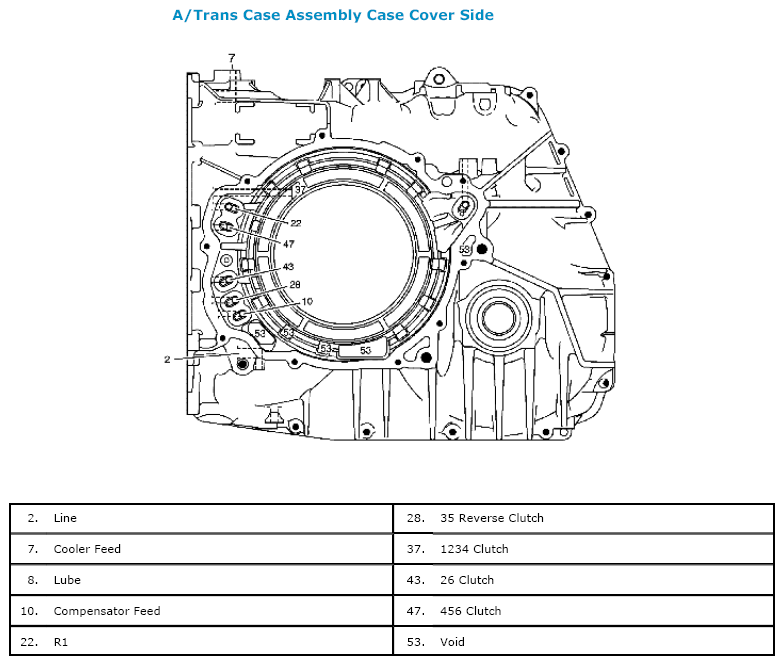

Fig 12: Identifying A/Trans Case Assembly Case Cover Side

Courtesy of SUZUKI OF AMERICA CORP.

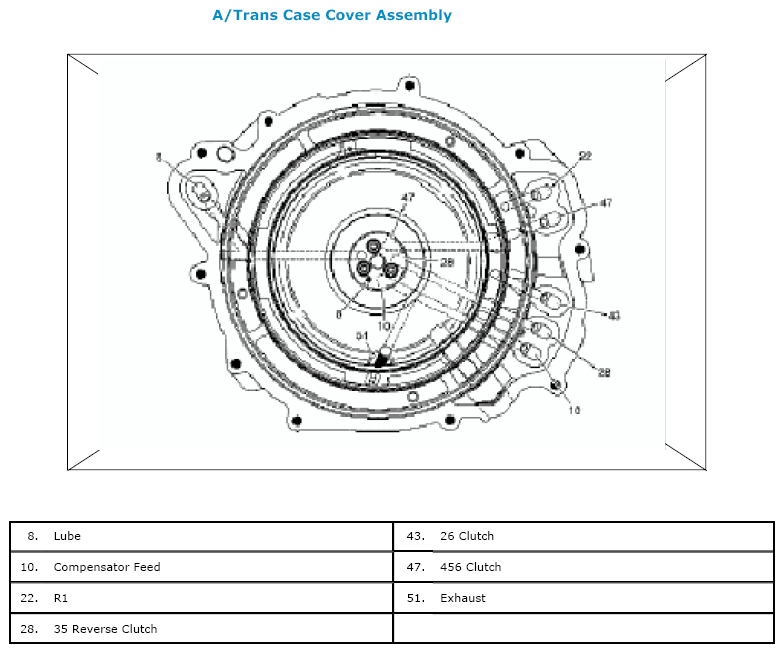

Fig 13: Identifying A/Trans Case Cover Assembly

Courtesy of SUZUKI OF AMERICA CORP.

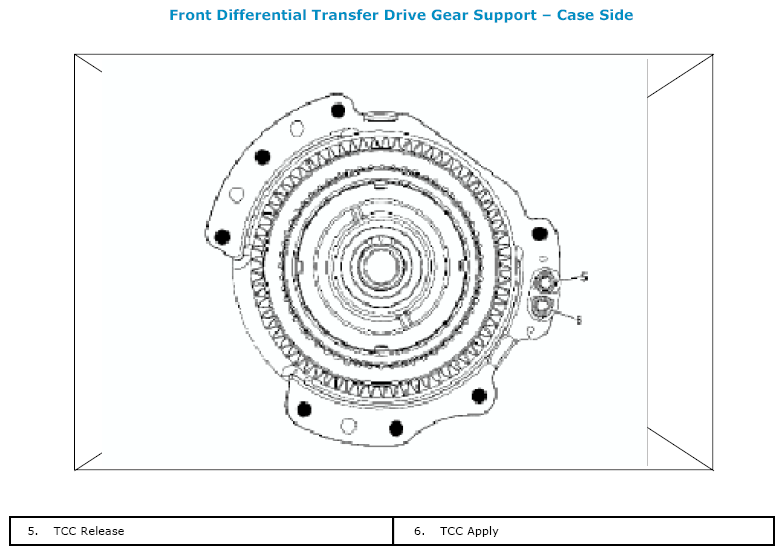

Fig 14: Identifying Front Differential Transfer Drive Gear Support - Case Side

Courtesy of SUZUKI OF AMERICA CORP.

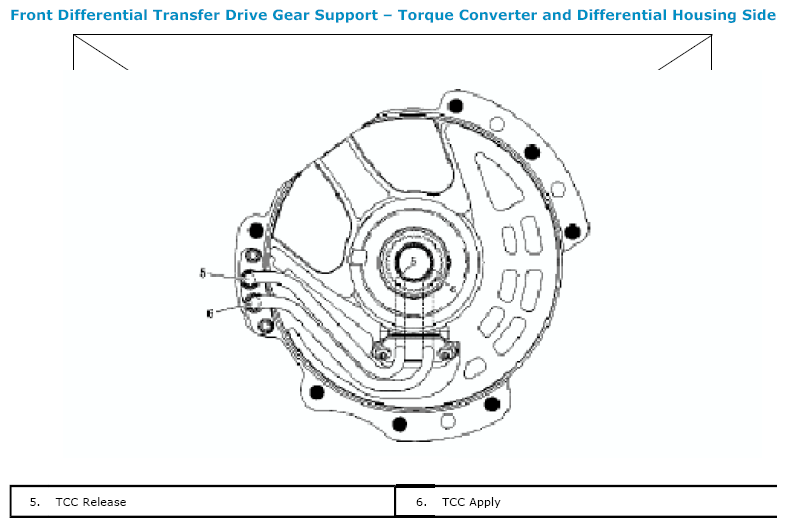

Fig 15: Identifying Front Differential Transfer Drive Gear Support - Torque Converter And Differential Housing Side

Courtesy of SUZUKI OF AMERICA CORP.
