Installation Procedure

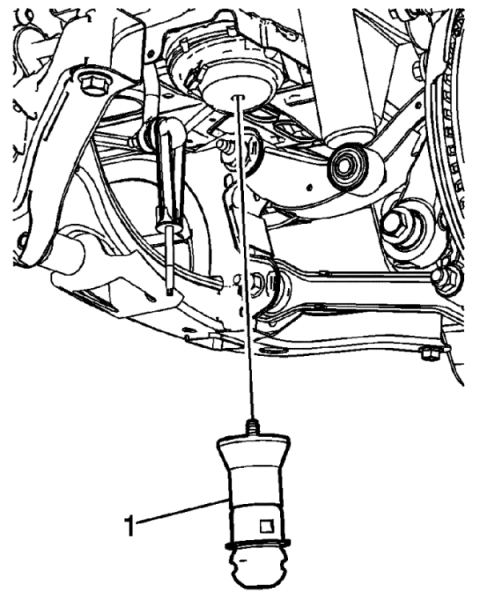

Fig 1: Identifying Rear Suspension Jounce Bumper

Courtesy of SUZUKI OF AMERICA CORP.

Install the rear suspension jounce bumper (1) and tighten until the jounce bumper just makes contact with the mounting bracket.

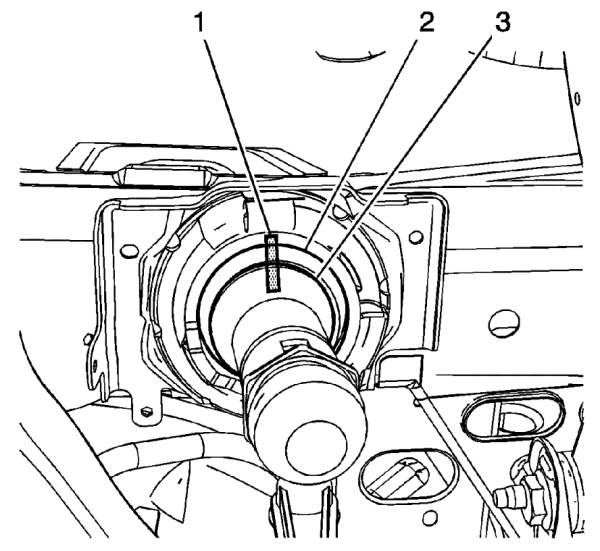

Fig 2: Identifying Reference Mark, Mounting Bracket, And Jounce Bumper

Courtesy of SUZUKI OF AMERICA CORP.

Using a grease pencil or equivalent, create a reference mark (1) from the jounce bumper (3) to the mounting bracket (2).
Tighten the jounce bumper (3) by rotating it 360° or one full turn.

Fig 3: Identifying Spring Jounce Bumper

Courtesy of SUZUKI OF AMERICA CORP.

Using the reference mark (1) as a starting point, rotate the jounce bumper (2) an additional 120° or two points of the hex nut (3) on the jounce bumper.
Install the lower control arm assembly. Refer to REAR AXLE LOWER CONTROL ARM REPLACEMENT .
Install the tire and wheel assembly. Refer to INSTALLATION PROCEDURE .
Remove the support and lower the vehicle.
