Outside Rearview Mirror - Driver (DK2)

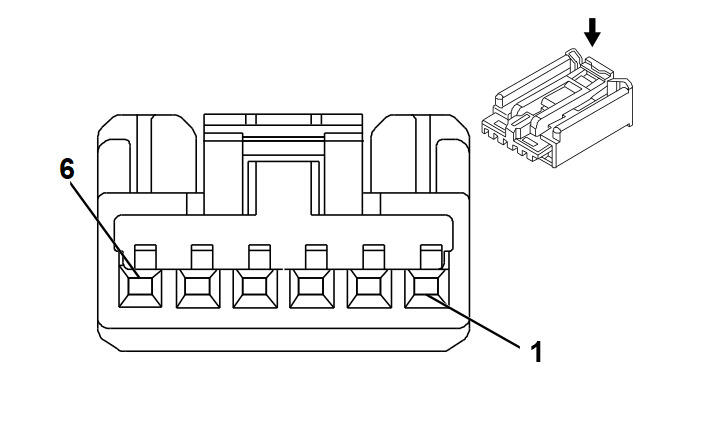

Fig 1: Outside Rearview Mirror - Driver (DK2) Connector End View
GM1862240Courtesy of GENERAL MOTORS CORP.
Outside Rearview Mirror - Driver (DK2)

Pin Wire Circuit Function
1 0.35 YE 1499 Driver Mirror Motor Left/Up Control
2 0.35 WH 81 Driver Mirror Motor Right Control
3 0.35 L-GN 88 Driver Mirror Motor Down Control
4 - - Not Used
5 0.5 BK 650 Ground
6 0.5 OG 2267 Mirror Heating Element Control
Connector Part Information
  • OEM: 15269798
  • Service: See Catalog
  • Description: 6-Way F AIT II Series (BK)

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
