Liftgate Wiper Motor Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

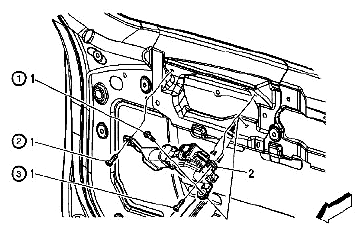

Fig 1: Identifying Liftgate Wiper Motor And Bolt

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedure Remove the liftgate center applique panel. Refer to LIFTGATE CENTER APPLIQUE REPLACEMENT .
1	Rear Window Wiper Motor Bolts (Qty: 3) CAUTION: Refer to FASTENER NOTICE . Tightening torque Tighten the rear window wiper motor bolts in the sequence as shown to 10 N.m (89 lb in)
2	Rear Window Wiper Motor Tip: Pull the motor forward, disconnect the electrical connector and remove the wiper motor shaft grommet.
