Front Fog Lamp Cover Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

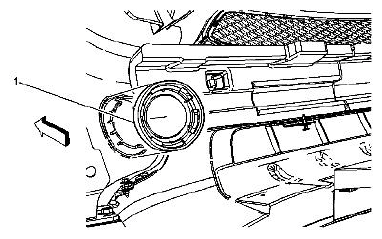

Fig 1: Identifying Front Fog Lamp Cover

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REPLACEMENT .
1	Front Fog Lamp Cover Procedure Release the front bumper fascia clips from the front fog lamp cover and remove.
