Dome Lamp Bulb Replacement (With DVD)
WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

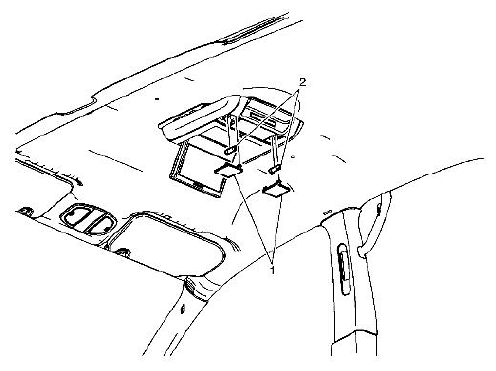

COMPONENTS NAME REFERENCE
| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to FASTENER NOTICE
. Fastener Tightening Specifications:
Refer to FASTENER TIGHTENING SPECIFICATIONS - LIGHTING . |
|
| 1 | Dome Lamp Lens Tip: Use a small flat bladed tool to aid in the removal of the lens. |
| 2 | Dome Lamp Bulb |
