Daytime Running Lamps (DRL) Resistor Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

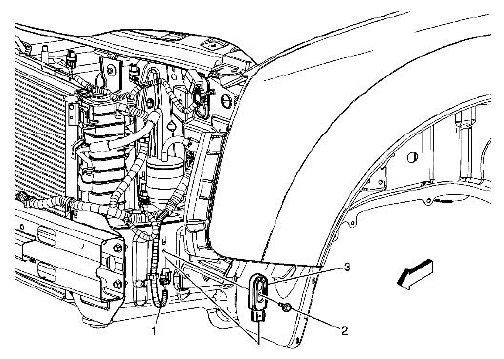

Fig 1: Identifying Daytime Running Lamps (DRL) Resistor

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to FRONT WHEELHOUSE LINER REPLACEMENT .
1	Forward Lamp Wiring Harness Assembly
2	Daytime Running Lamp Resistor Assembly Bolt CAUTION: Refer to FASTENER NOTICE . Tightening torque 6 N.m (53 lb in)
3	Daytime Running Lamp Resistor Assembly Procedure Disconnect the electrical connector.
