Inflatable Restraint Vehicle Rollover Sensor Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

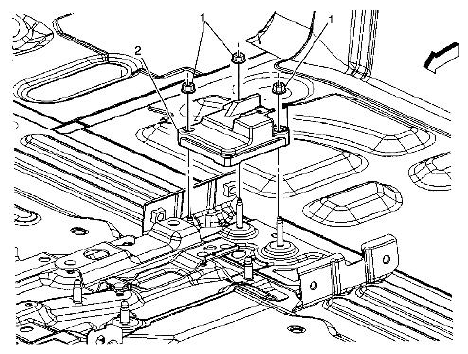

Fig 1: Identifying Inflatable Restraint Vehicle Rollover Sensor Nut And Inflatable Restraint Vehicle Rollover Sensor Assembly

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT REFERENCE

Callout	Component Name
WARNING: Refer to SIR CAUTION . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR DISABLING AND ENABLING . Remove the floor console. Refer to CONSOLE REPLACEMENT .
1	Inflatable Restraint Vehicle Rollover Sensor Nut (Qty: 3) CAUTION: Refer to FASTENER NOTICE . Tightening torque 10 N.m (89 lb in)
2	Inflatable Restraint Vehicle Rollover Sensor Assembly Procedure Disconnect the electrical connectors. Tip: Position the carpet in order to access the sensor.
